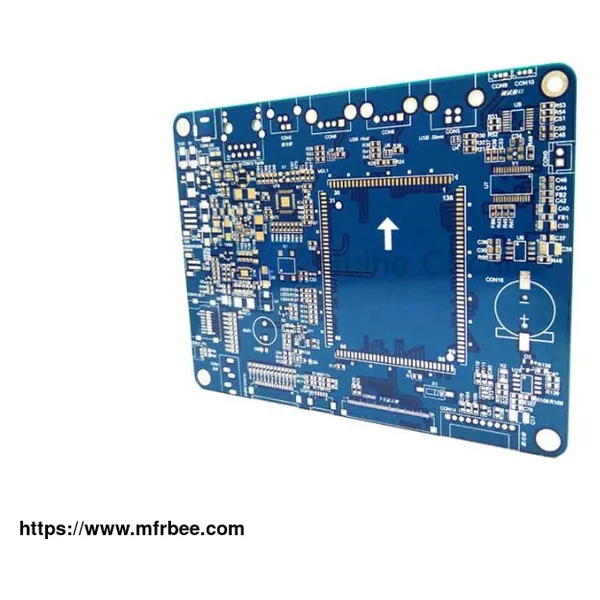

6 Layer HASL Blind Buried Via PCB

Minimum Order
1
Packaging
N/A
Delivery
15 Days

Number of layers: 6
Surface finish: HASL
Base material: FR4
Outer Layer W/S: 9/4mil
Inner layer W/S: 11/7mil
Thickness:1.6mm
Min. hole diameter: 0.3mm
Special process: Blind Vias

Advantages Of 6 Layer HASL Blind Buried Via PCB
Own lamination process to convenient production for Multilayer PCB and shorten the lead time.
Jiangxi facility is environmental-friendly approved by the government .
Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.
Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.
Quick response to quotes.
The management level is highly educated, 30% have professional titles and more than ten years of work experience.
High staff stability, low mobility.
UL/ISO9001/SGS/IATF16949/ROHS/ISO1400 certificated.
Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.
Establish an e-commerce system to reduce transaction costs and increase market response speed.

As a professional circuit board company, we provide bare printed circuit board, bare pcb board, bare pcb, pcb manufacturing service and etc. For more information about hasl pcb surface finish and hasl pcb finish, please feel free to contact us!
