Cost-Effective Laser Pipe/Tube Cutting Machine Supplier

Low investment, high value, unique installation-free design, featured by out-of-box service.

Overview of Cost-Effective Metal Tube Laser Cutting Machine

Cost-effective fiber laser tube cutting machine P2060B, your start-off laser tube cutting machine. It is an affordable, practical, and versatile tube laser cutter machine. The most productive fiber solution for your metalworking business. Tube ∅ Range min. 20 - max. 200 mm.

Multi-function

P2060B laser tube cutting machine can not only cut round tubes, square tubes, elliptical tubes, but also can cut any tube shape such as channel steel, I-beam, and special-shaped tubes.

Cost-effective

Compared with the laser pipe cutting machine with almost the same processing capacity, the cost can be reduced by 50%.

Friendly Operation

No NC code program is needed, just import 3D graphics to start operation.

Low Investment, High Return

● 1 tube laser cutting machine ＞3 sawing machines+ 2 punching machines

● It's the best entry-level metalworking tool

● A large plate welding bed is stable and durable for more than ten years

Application of Cost-Effective Metal Tube Laser Cutting Machine

Metal Furniture Industry

Metal furniture used to be very expensive because of the difficulty of metalworking. Compared with traditional processing methods, laser metal cutting machines can provide more furniture products at the exact cost and the same output. While ensuring processing accuracy, it can also achieve the diversity and versatility of furniture products. High-precision cutting of sheet metal parts and metal pipes opens up new creative freedoms for furniture manufacturers—Cost-Effective Metal Tube Laser Cutting Machine P2060B the best tube laser cutter machine for them.

Sport & Fitness:

These years, the fitness equipment industry is developing hotly. While choosing a cost-effective fiber laser tube cutting machine, the buyer also matches other types of equipment with simultaneous input to increase production capacity. Choose the right tube fiber laser cutting machine factory to plan and design the gym requirements and equipment requirements during equipment purchase. Low-cost tube laser machines can save money at the initial stage of construction and be reused many times.

Medical Equipment Industry

The medical industry has higher requirements for equipment and operation. Laser pipe cutting machine is more efficient, stable, and reliable. It has high cutting precision, high dimensional precision, smooth and clean incision, and slight material loss. So it is an indispensable guarantee for the medical industry's manufacture of precision instruments. Various specifications and types of medical equipment require complex and numerous processing techniques. The P2060B economical laser pipe cutting machine can fully meet the requirements.

Technical Data Of Cost-Effective Laser Tube Cutting Machine

Model name P2060B

Workpiece length 0- 6000 mm (19.8')

Tube diameter range Φ10mm - Φ200mm; □10mm * 10mm - □140mm * 140mm; Channel steel 16#; I-beam 16#

Type of tube Round tube, square tube, rectangular tube, angle iron, channel steel, etc.

Single tube bearing weight 150kg (Φ200mm*8mm*6000m)

Laser source IPG/ nLIGHT/ Raycus fiber laser generator

Laser power 1500W 2000W 3000W

Repeatability 0.03 mm

X Y axis maximum moving speed 80m/min

Rotational speed 130r/min

Laser Cutting Metals And Laser Powers

Material 1000W 1500W 2000W 2500W 3000W 4000W 6000W

Carbon steel 6 10 12 14 16 20 25

Stainless steel 4 6 8 10 10 12 16

Galvanized steel 3 5 6 8 8 10 12

Aluminum 3 4 5 6 6 10 16

Brass 2 3 4 5 5 8 10

Copper 1 2 2 3 3 4 6

Highlights of Cost-Effective Metal Tube Laser Cutting Machine

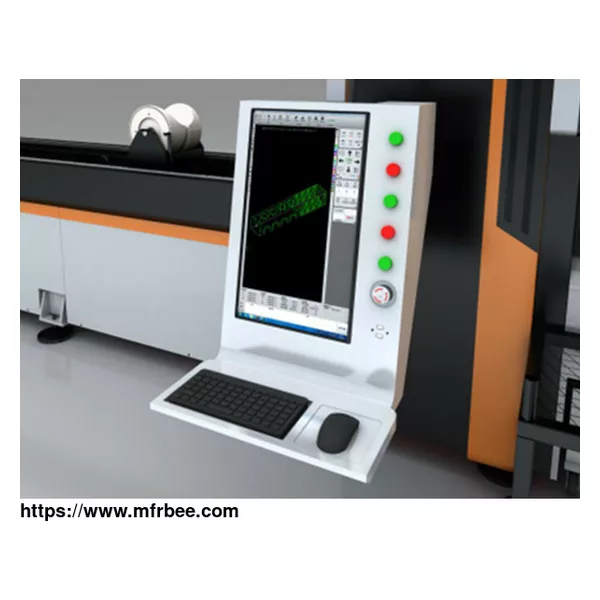

Professional Pipe Cutting Bus Control System

The bus cutting system is integrated with the control, matching the bus high-speed servo motor and the standard configuration professional pipe nesting software.

● More stable processing and high efficiency.

● Lower equipment failure rate.

● Simpler equipment maintenance.

Full-stroke Chuck

When cutting pipes in the diameter range of 10-200mm, there is no need to adjust the position of the jaws. P2060B cnc laser tube cutting machine can cut any hollow metal pipe.

● Save time and labor when processing different types of metal pipes.

Simple Auto Feeder

Optional configuration, automatic feeder to help your metalworking business.

Double Reducing Wheel Support System

● The processing end adopts variable-diameter wheel support to ensure a more stable cutting process for more extended and thinner pipes and avoid pipe bending and deformation;

● The tail end adopts variable-diameter wheel support to avoid inaccurate precision caused by excessive tail tube weight when processing ultra-long tubes.

Pneumatic Chuck

The clamping force of the pneumatic chuck can be adjusted flexibly. It is not easy to deform when clamping small tubes and thin tubes, and it is stable when clamping heavy tubes.

● One-key clamping in place, more convenient and quick！

Processing Area

The length of the pipe can reach 6 meters, and the pipe diameter can reach 10-200 mm.

Software of Cost-Effective Laser Tube Cutting Machine

FSCUT5000 Bus Cutting System

FSCUT5000 series is a bus cutting system specially launched for low-cost tube lasers. With the tube nesting software TubesT, it can realize various tube cutting processes such as co-edge cutting and supports online graphics import and drawing of the system, which saves time and materials.

Automation of Cost-Effective Laser Tube Cutting Machine

Simple Auto Feeder

It can be matched with a simple auto feeder to realize semi-automatic feeding, improve efficiency and save labor.

Industrial Robot

It can automatically collect and stack the processed workpieces through a matching 3D robot arm machine, improving production automation capabilities.

Digital-controlled Laser Tube Cutting Machines

● Digital system control ensures accuracy and flexibility. The laser tube cutting technology can produce any shape that has been programmed and cut in any direction.

● Engineers can quickly change the shape of the template without the help of any tools. The design can be modified at the last minute and will not affect the whole production process.

● End users can control short or medium version production without making a large number of templates, which can respond more quickly to customer needs, making it possible to achieve personalized customization.

Mechanical Cutting VS Laser Cutting Machine For Tube

Mechanical Cutting Machine

Mechanical cutting uses power-driven equipment to form and shape the material according to a predefined design.

Generally, mechanical cutting, punching, advanced laser cutting, and so on are used in the cutting process.

In small-batch, mechanical cutting is mainly used, such as turning, milling, circular saw cutting, grinding wheel cutting, etc. The main problems are low production efficiency and sizeable environmental pollution.

Laser Tube Cutting Machine

As an advanced processing tool, laser cutting machine is gradually entering the tube cutting market. Laser cutting technology is a technology with high production efficiency and firm productivity.

● The whole series of products have realized the modular design and free combination.

● Precision CNC fully automatic laser tube cutting. High precision, high efficiency, stable and reliability.

● Intelligent management system, robust process database to achieve high-quality processing.

● Strong expansibility, flexible processing of all kinds of pipes, profiles, and special-shaped pipes

Types Of Laser Tube Cutting Machine

Solid-state Laser Tube Cutting Machine

Compared with CO2 laser, a solid-state laser tube cutting machine has a lower operating cost and higher cutting speed. Early fiber technology could only cut at a higher rate on thinner materials. Still, with the emergence of higher-power lasers, fiber lasers showed a high cutting speed even in materials with a thickness of 0.5 inches. As a result, although the price of a solid-state laser tube cutting machine is high, it will still be a popular choice. Similarly, fiber technology can cut reflective materials such as brass and copper, but it is difficult for CO2 lasers.

Traditional CO2 Laser Tube Cutting Machine

In the past two decades, CO2 lasers have been the leading force in the metal manufacturing industry. These lasers work by making electrical energy flow through gas-filled resonators and using mirrors to focus and transmit light beams. In fiber lasers, diodes are used to create lasers, guided and amplified by optical cables, similar to those used in the telecommunications industry. Some applications are still more suitable for CO2 lasers, such as those requiring good edge quality on thicker or unique materials.

Golden Laser is a metal pipe laser cutter factory, we provide china fiber laser pipe cutting machine, low cost tube laser, laser pipe cutting machine, etc. Contact us to know more.
