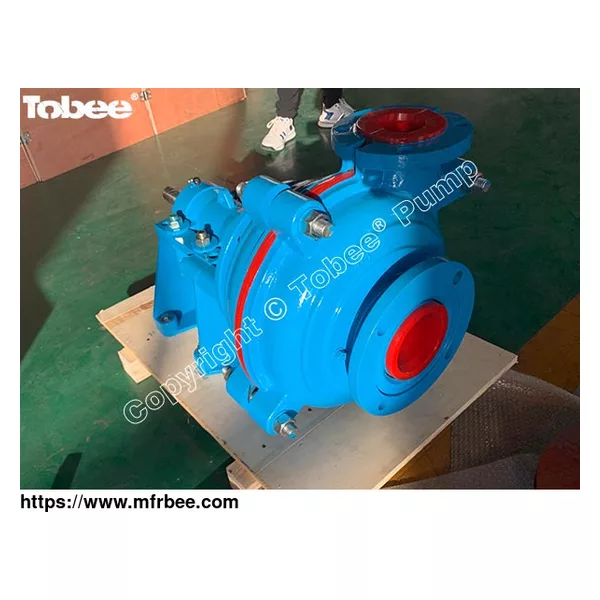

Tobee® 4x3C-AH Slurry Pump
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Tobee® 4x3C-AH Slurry Pump is engineered with the latest hydraulic and wear technologies to cope with the most severe corrosive and abrasive slurry applications, The 4x3C-AH pumps feature patented innovative designs that can significantly reduce the operational costs of slurry pumping, It is widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for transportation of abrasive solid slurry.
Design Features:
√ The 4x3 C AH slurry pump frame plates have replaceable wear-resistant metal liners, impellers & volute liners are made of wear-resistant metal(such as A05, A49,and other high chrome metal).
√ The 4x3 C AH slurry pump bearing assembly use cylindrical structure, adjusting the space between impeller& front liner easily, being removed completely when being repaired. Grease lubrication.
√ The 4x3 C AH slurry pump shaft seal could use the packing seal, expeller seal and mechanical seal. One pump also can be use packing seal with expeller seal together.
√ The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.
