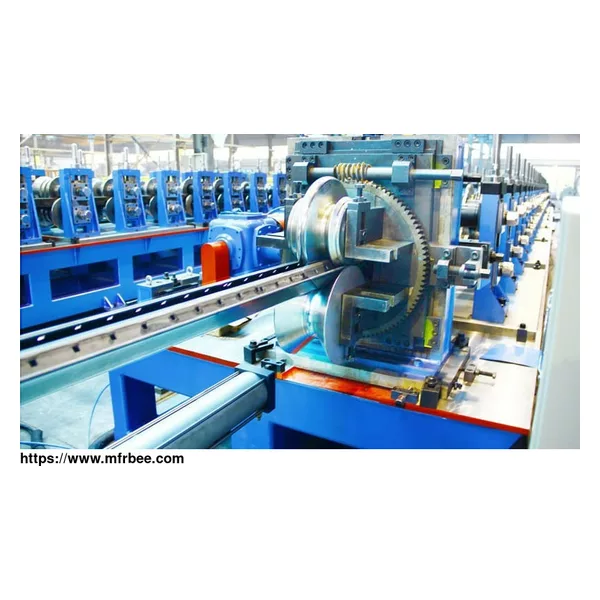

The automatic shelf column forming machine is mainly composed of decoiler, power leveling machine, servo feeding mechanism + punch punching mechanism, roller forming machine, electronic control
system, hydraulic system, mechanical tracking shear mechanism, and other components.
The production line of our rack roll forming machine can produce 120× 69,100 × 69,80 ×69 shelf column profiles with a thickness of 1.2-2.5mm. At the same time, we can also customize production
lines according to customer requirements.
Rack Rolling Machine Composition
Feeding, leveling, feeder, punching, forming machine, fixed-length cut off, receiving table, electrical cabinet (PLC control) and other components
Rack Rolling Machine Features
The material of the rolling roller is 40Cr, and the hardness is HB280 after tempering and tempering.
The transmission structure of the rack rolling machine is gearbox transmission or chain transmission.
Rack rolling machine adopts PLC full intelligent control, high automation program, safe and efficient.
The formed frame of the rack rolling machine is welded with high-strength channel steel. High strength, long service life.
The material of the forming mold is GCr15, quenching, hardness: hrc56-62 ℃.
Advantages of Rack Rolling Machine
As a professional manufacturer and exporter of all kinds of standard and non-standard cold roll forming lines and tube mill/pipe mill lines, Hangzhou Roll Forming Technology Co., Ltd produces rack
roll forming machine that have the following characteristics:
First, adopting the unique punching die structure design, the rack rolling machine can greatly reduce the friction between the pipe and the die and avoid the damage of the material surface, so as
to save the cost of secondary treatment of the material surface.
Second, the storage rack roll forming machine adopts a unique machine design, so that the punching process more streamlined and simplified. It can reduce material handling and greatly improve work
efficiency.
Third, with the unique circuit design, oil design, and safety system design, our rack roll forming machine is also energy-saving, environment-friendly, safe and convenient.
Fourth, the equipment mold automatic discharge and blanking, thereby effectively improving the efficiency of punching and extending the service life of the mold.
Fifth, with great consistency over the rack roll forming process, the performance of our product quality is stable and guaranteed.
Welcome both national and international customers to contact us for more information.
For more information about rack rolling process, please feel free to contact us!
If you need any kinds of roll forming tube mill, please contact us, as a professional tube mill manufacturer, RF is willing to offer you high quality products.
