6-8M BUS AIR SUSPENSION SYSTEM

FOB Price
USD $500.00 / Piece
Place Of Origin
china
Minimum Order
1
Packaging
N/A
Delivery
15 Days

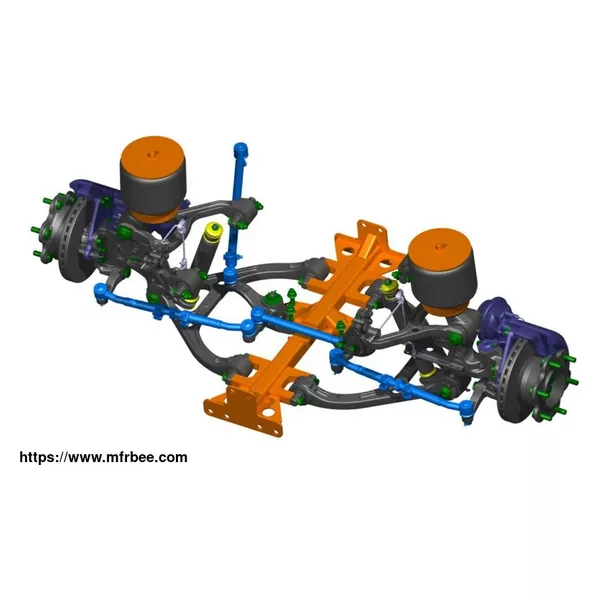

The basic structure of the independent front air suspension adopts a double-wishbone structure, which is suitable for full-bearing chassis and beam-type frames; the suspension guiding elements and steering system are integrated through the lower longitudinal beam to ensure installation accuracy and four-wheel positioning.

The rear suspension adopts a composite air suspension structure, and the air springs are matched with high-strength straight leaf springs to improve the load-carrying capacity of the rear suspension. Lateral stabilizer bars and lateral thrust bars are added to ensure good overall vehicle stability.

Main technical parameters of rear suspension
Rated load ARL055 Series Air Suspension System
Rated load 5500KG
Axle travel 152mm(+72/-80)
Center distance of plate support 860mm
Airbag installation height 253mm
Shock absorber installation height 434mm

Komman is a professional air suspension supplier, we provide vw bus air ride, air suspension, air lift bags for sale, air lift suspension, air lift kit, air lift air bags, air lift suspension kit, front shock absorber and etc. For air lift suspension price or more information, please feel free to contact us!
