Masonry Wall Joint Welded Wire Panels

Truss Wire is a kind of Horizontal Joint Reinforcing Mesh, offering continuous length joint structural reinforcement. Widely used in the masonry wall and bridge construction.

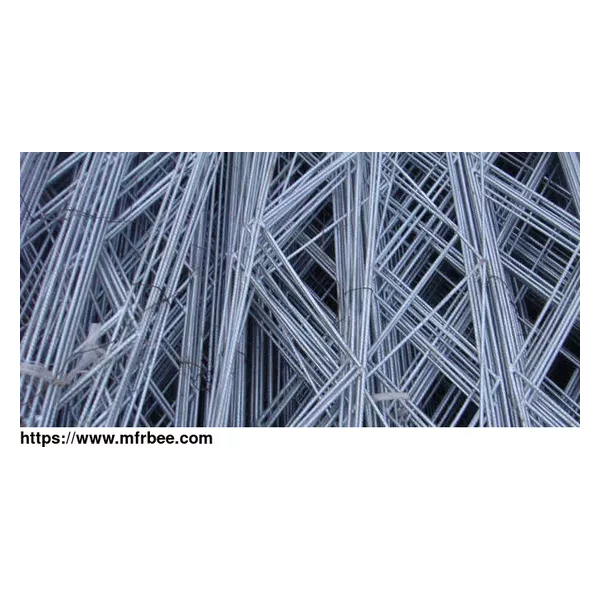

Truss type welded wire / rod reinforcement is a steel wire structural sheet designed to be embedded in the masonry wall. It consists of 2 side-rods welded to a continuous diagonal formed cross-rod forming a truss design with alter nating welds not exceeding 8” (200 mm) O. C. overall. For use in single-wythe walls.

How Truss Mesh Works

Welded Fabrics of galvanized after weld (GAW) The mesh panel is normally located in the bed joint to strengthen masonry panels without thickening the wall. It has the continuous lengths of joint reinforcement that are embedded into the horizontal mortar joints of masonry walls. Joint reinforcement has long proven to be necessary for superior performance of masonry wall construction.

Block work truss mesh sheet with its unique structure ensures good mortar cover even when lapped or used with wall ties: The longitudinal steel wires are flattened, while cross wires are welded in the same plane as the main wires at 450mm centres.
