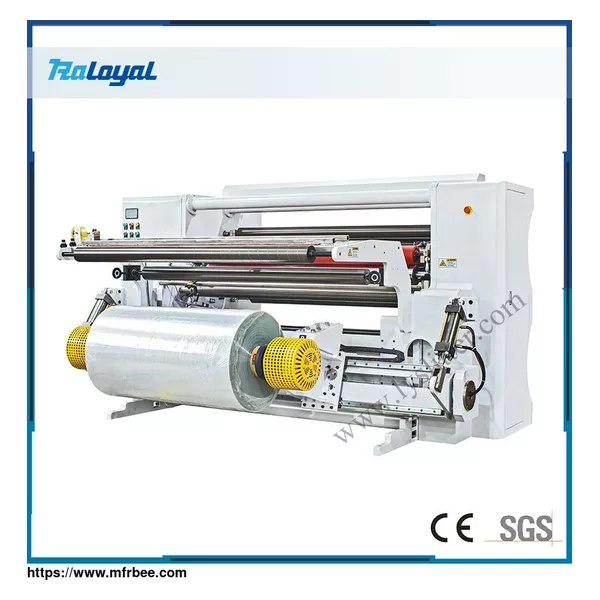

HCH2-1300 High Speed Slitting Machine with Friction Shaft
Product Quick Detail
- FOB Price
- USD $73,529.00 / Piece
- Place Of Origin
- Zhejiang
- Minimum Order
- 1
- Packaging
- WOODEN CASE
- Delivery
- 35 days
Specifications
HCH2 slitting and rewinding equipment is our most popular and hot selling machine in the market, which can slit both label sticker, paper and flexible film in optical and electrical industry with
the most competitive price.
Application
The HCH2-1300 model pressure sensitive adhesive slitting machine is our most popular machine, which can both used for label paper such as Silicon Coated Paper, Metalized Paper, Self-adhesive Paper
and flexible, such as PET/BOPP/PE etc protector film ,optical film, release film, laminated film etc slitting and rewinding.
Application industry:
Our HCH2 type slitting machines are widely used in electricity, label, packing, medical, optical, aerospace etc. industry.
Our Difference
Automatic tension control to ensure the whole machine running in high speed in stable status.
KOEAD Blade and. Friction shaft ensure each rewinding roll rewinding effect is smooth for both end surface and side face.
Advantage
1. SIEMENS PLC control, Touch screen on human machine interface with high resolution colors and easy operator controls.
2. Heavy machine body processed by CNC: ensure machine running in high speed stably and long time lifetime.
3. Automatic shaftless adopted to improve the efficiency and assure the operator safety.
4. Shaftless loading control by hydraulic system, more powerful and strength than pneumatic cylinder control.
5. Main motor and rewinder motor adopted servo motor + JAPAN YASKAWA inverter control.
6. Unwinding tension and rewinding tension controlled by SIMENS PLC and JAPAN SMC proportional valves, automatic tension control, keep tension stable.
7. Pausource web guide system, adopted ultrasonic inspection, servo motor drive, ensure the material running stable and precision of align.
8. High quality KOREAN circular blade adopted, SKH-2 material ensure the lifetime and also the slitting accuracy.
9. Automatic counter wheel KOREA AUTONIC adopted, ensure higher precision for meter counting.
10. Synchronous belt transmission, low noise, running more steady.
11. Outside splicing table, which is more convenient for worker to operate and increase the productivity.
12. All the guide roll are processed by dynamic balance treatment, which make sure the machine can run in high speed stably.
13. Rubber roller adopted polyurethane material, more wear-resisting and own longer lifetime.
14. Aluminum roller adopted harden oxidation treatment, have the characteristic of high hardness and surface is more smooth, anti-scratch.
15. Friction shaft, each unit’s tension can be compensated automatically and ensure the slitting effect is more smooth and even.
16. Auto blade set as option.
17. Auto push can be selected as option.
Technical parameter:
Technical parameter
1 Machine model HCH2-1300 HCH2-1600
2 Slitting effective width 30-1300mm 30-1600mm
3 Max Slitting speed 300m/min 300m/min
4 Unwinding diameter Φ1200mm (shaftless loading ) Φ1200mm (shaftless loading )
5 Rewinding diameter 2*φ600mm 2*φ600mm
6 Main motor 4kw 4kw
7 Rewinding motor power 11KW 11KW
8 Total power 16kw 16kw
9 Precision ±0.03mm ±0.03mm
10 Machine weight 3500kg 4000kg
11 Installation dimension 2850*3000*1750mm 3250*3000*1750mm
Ruian Loyal Machinery Co, Ltd., is a professional slitting machine manufacturer, we provide slitting cutter machine, copper foil slitting machine, hci slitting machine, Ruian Loyal packing
solution, flexographic label printing machine and etc. Contact us to know high speed slitting machine price or more.
