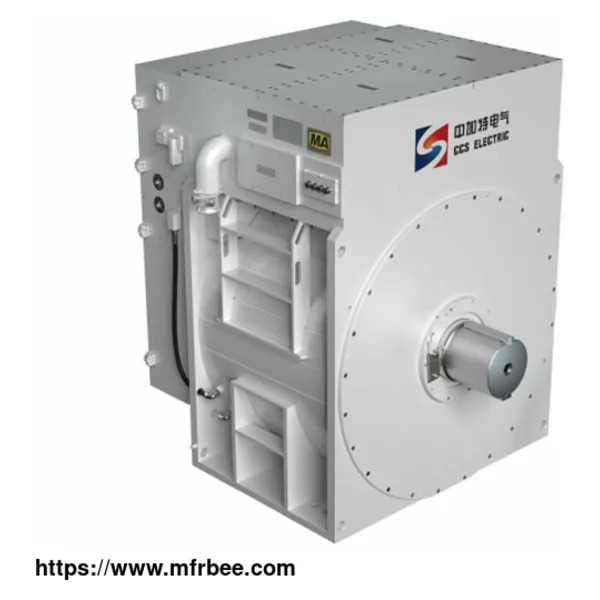

PM Integrated VFD Motor

FOB Price: USD $100,000.00 / Piece

Minimum Order: 1

Packaging: N/A

Delivery: 60 Days

Intelligent permanent magnet direct drive system is a comprehensive solution for equipment drive and control technology. Synchronous motor vfd takes permanent magnet direct drive technology as the core and adopts special frequency converter, permanent magnet synchronous frequency conversion motor, and water cooler to replace traditional mechanical drive devices such as asynchronous motor, reducer and hydraulic coupler. At present, VFD synchronous motor is widely used in mines, coal, ports, electric power, building materials, chemical industry, and other fields.

Specifications of the PM Integrated VFD for Synchronous Motor

Voltage range 380V/400V/600V/660V/3300V/4160V/6000V/6600V/10000V

Frequency 50Hz/60HZ

Voltage fluctuation range at grid -15%-10%

Frequency fluctuation at grid ±0.2Hz

Speed range 60rpm,75rpm,90rmp and so on

Output frequency 0-50Hz/60Hz

Power rating 45kW-2000kW

VFD principle Voltage source inverter

Motor type Synchronous motor

Control method V/F or DTC without sensor

Starting torque 2 times

Frequency resolution 0.01Hz

Ingress protection IP54 pr IP55

Installation IMB3 or IMB5

Communication CAN、RS485、Profinet、Ethernet IP etc

Features of the PM Motor with Integrated VFD

The VFD synchronous motor has the characteristics of high VFD motor efficiency, energy-saving, large starting torque, excellent performance, small maintenance, and intelligent drive.

High efficiency and energy saving

The intermediate transmission link of the vfd synchronous motor is omitted, and the load is directly driven.

No rotor excitation, no rotor copper loss, high rated efficiency.

The light load area has excellent efficiency and high operation efficiency of the motor with integrated VFD.

Even VFD synchronous motor is at 0 speed, there is a relatively large torque

Heavy-duty starting: starting torque up to 2 times rated torque.

Smooth start to reduce the mechanical impact on load equipment.

Automatic step-less speed regulation according to load, reducing power consumption and prolonging the service life of load equipment.

Motor with integrated VFD has a Small starting current, reducing the impact on the power grid and reducing power grid failures.

VFD for synchronous motor has less footprint.

With integrated VFD motor technology, you can install the equipment in the narrow space as shown in our drawing.

For more information about vfd for synchronous motor, please feel free to contact us!
