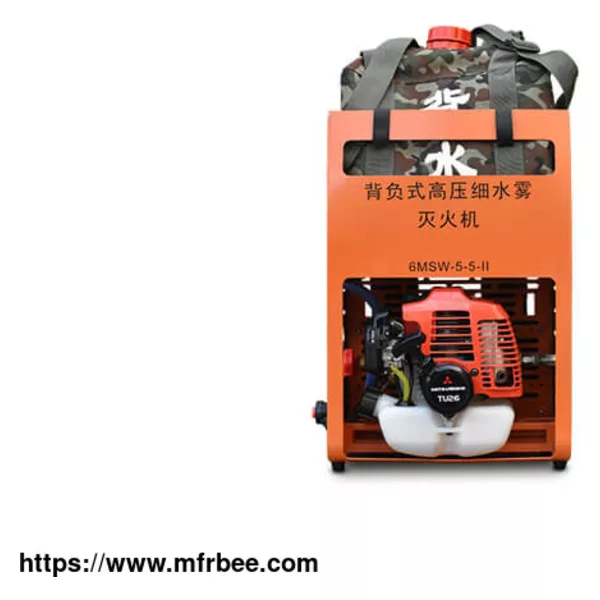

Knapsack Water Mist Extinguishing Device

The backpack water mist fire extinguisher is suitable for extinguishing the solid, gas and electrical fire in warehouse, airport, coal, petrochemical, transportation, commercial place and civil house. Especially in the narrow space, underground, vehicles and small range of A, B, C type fire fighting performance is more obvious. Early use in the forest natural environment fire, backpack water mist fire extinguisher is an excellent choice.

Parameters of Knapsack Water Mist Extinguishing Device

The Engine Single cylinder air-cooled two-stroke engine

Length * Width * Height 572 x 320 x 306（mm）

Startup Performance 8S

The Water Volume 22L

Fuel Tank Capacity 0.6L

Maximum Pressure 5MPa

Horizontal Effective Range 9m

The Host Of 8kg

The Machine Frame Aluminum alloy corrosion treatment

Structure Split water bag and main engine

Configuration Equipped with operation instructions and notes label

Color The machine is orange-yellow warning color

Hexadecimal Multi-angle Sprinkler Head (1) Structure: rotating gear type six-hole structure, the nozzle body is made of aluminum alloy and anodized, the nozzle is stainless steel inset structure, the nozzle is marked with 0°, 15°, 25°, 40°, 50°, 65° injection Angle, each gear corresponds to a jet Angle, can be manually rotated to replace gear, equipped with 1/4 inch quick plug connection

(2) Fan (15°) injection distance of 8m

(3) Fan-shaped (40°) injection distance is 7m

(4) Fan (65°) injection distance ≥5m

Features of Knapsack Water Mist Extinguishing Device



01

Double Fire Extinguishing Effect

Fast cooling and wide coverage.



02

High Safety

Low pressure operation, no recoil, to ensure the safety of rescue workers.

03

Less Water Consumption

Less water consumption of knapsack bottle group, high use efficiency.



04

Rapid Response

Shorten the response time of rescue personnel, can enter the fire faster, improve the efficiency of fire fighting, the fire control in the initial stage.
