Automatic Foil Stamping&Die Cutting Machine
- Packaging
- N/A
- Delivery
- N/A
Specifications

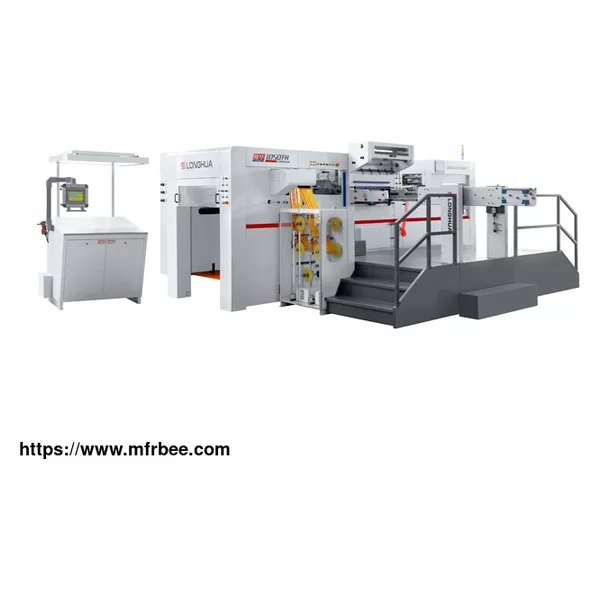

We designed 1050FH Automatic Foil Stamping Die Cutting Machine, which is the greatest research and development and manufacturing of new equipment with a higher degree of intelligence.
This automatic foil stamping machine and automatic foil printing machine adopts many international advanced pneumatic and servo-driven processing technologies. After strict quality control of
assembly, our automatic foiling machine has the advantages of simple operation, safety and reliability.
This automatic foiling machine can perform stamping, creasing and die-cutting operations after printing on paper, cardboard, corrugated paper less than 4mm, paste paper and laminated paper of
80g/m² or more.
When the speed of automatic foil stamping & die cutting machine reaches 7,500 sheets/hour, the good quality and design make the machine work stably as well as ensure safety. As one of the mature
automatic die cutting machine manufacturers, we produce machines that will provide you with a comfortable operation and faster return on investment.
Features of Automatic Foil Stamping¨ Cutting Machine
Feeder/Feeding Section
Imported high quality feeder, high precision, stable in high speed.
Four suction nozzles, four sending nozzles, ensure feeding smoothly.
Adopt imported screw air-blowing device, it could make the sheet send smoothly.
Suction angle and height can be adjustable.
Non-stop paper feeding device
Double sheet detecting system
Suction-blow two function vacuum pump
The design of stacker preparatory
stage was improved, it could use
prepared car sheet piling. Also could
use ordinary hydraulic car sheet piling
to stacker directly.
Feeding Positioning Section
The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull guide and push guide, accounting to paper
choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.
Cutting Section/Horizontal and vertical foil stamping system
Adopt advanced technology with single gripper location could adjust the front-and-back registration. Horizontal hot stamping dual-anxis/Vertical hot stamping collection of waste foil frame into
operation side, it is benefit of operation. 12 electric heating areas have timing penumatic temperature controller function, each area can be controlled separately. It makes foil-delivering servo
curve tracking the speed variation of machine in time for using motion controller. So it could reach the foil-delivering smoothly.
Foil Stamping/ Die Cutting Section
The driving gear ensures high speed of die cutting together. The pneumatic locking mechanism and air clutch are fast and stable. The die cutting frame can prevent the die cutting plate from
drooping or separating effectively.
Quick Changed Foil Device
Vertical under foil frame could be pulled out of machine, so that it could make the foil work more convenient.
Rewinding Device
There has brush rewinding foil function. And it has equipped with a re-coil collection waste foil device. The buffer force prevent the foil from broken.
Delivery Section
Delivery section add tester into security system. It is equipped with inset counter. Using subsection could adjust brush and sheet air-blowing device, so the finished product of delivery section
could product stably. Gripper drive train expanded buffer device. A non-stop paper delivery device bring high efficiency and fast return.
Specification of Automatic Foil Stamping¨ Cutting Machine
Max. Paper Size 1050×750 mm
Min. Paper Size 400×360 mm
Max. Cutting Size 1040×720 mm
Max. Foil Stamping Size 1020×600 mm
Inner Chase Size 1080×745 mm
Steel Plate Size 1080×736 mm
Processed Materials Cardboard：80~2000 g/m² Corrugated Paper：≤4mm
Max. Pressure 300 N/cm²
Gripper Margin 8 mm
Max. Working Speed 7500 s/h
Total Weight 16.8 T
Dimension (L×W×H) 7060×4200×2230 mm
Max. Feeding Pile Height 1550 mm
Max. Delivery Pile Height 1400 mm
Foil Shaft V3+H2
Vertical foil stamping section performance specification
Max. Foil Width 1020 mm
Min. Foil Width 25 mm
Max. Length of Pull Foil 700 mm
Max. Diameter of Foil Φ 240mm
Horizontal foil stamping section performance specification
Max. Foil Width 600 mm
Min. Foil Width 25 mm
Max. Length of Pull Foil 1020 mm
Max. Diameter of Foil Φ200 mm
Foil stamping system&other comprehensive performance specification
Stamping temp. adjustable range 0℃~200℃
Heating zones 12
Heated Plate Power 24 kw / 24kw
Total Power 57 kw
Voltage Requirements 380V 50Hz
Air compressor 0.8Mpa, 0.36m² /min
No. Accessory Brand Place of Origin
1 Photoelectric Switch SUNX Japan
2 HMI WEINVIEW Taiwan
3 Button SCHNEIDER France
4 A.C. Contactor SIEMENS Germany
5 Solid State Relay FOTEK Taiwan
6 PLC MITSUBISHI/PANASONIC Japan
7 Electric Horn QLIGHT Korea
8 Magnetic Valve SMC Japan
9 Oil-water Separator AIRTAC Taiwan
10 Motor Breaker SIEMENS Germany
11 Servo Motor YASKAWA Japan
12 Main Motor TECO Taiwan
13 Gear Motor CPG Taiwan
14 Oil Pressure Switch ARK Korea
15 Pneumatic Clutch OMPI Italy
16 Paper Feed Clutch MIKIPULLEY/OGURA Japan
17 Torque Limiter JASU Taiwan
18 Indexing Drives TAN TZU Taiwan
19 Vacuum Pump BECKER Germany
20 Feeder YONGCHUAN Taiwan
21 Feeder Nozzle SILENT Sweden
22 Tooth Row Drive Chain RENOLD Britain
23 Other Drive Chain TYC Taiwan
24 Tooth Row JASU Taiwan
25 Bearing FALA/IKO Germany/Japan
26 Rotary Joints DEUBLIN America
27 Timing Belt OPTIBELT Germany
28 Paper Feed Belt CODONBELT Switzerland
29 Mould Coil Spring TOHATSU Japan
30 Worm&Worm Wheel LIMING Taiwan
31 Oil Temp.Conditioning System WLP Taiwan
32 Cooling Fan SUNON Taiwan
33 Heat Exchanger LEINIX America
34 Lubrication Pump YONGSHENG Taiwan
35 Encoder OMRON Japan
36 Sealing Ring CTY Germany
37 Frequency Converter YASKAWA Japan
38 Body Material Ductile Iron QT600-3
Highlights of Automatic Foil Stamping¨ Cutting Machine
01
Pneumatic Clutch
The high quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed.
02
Lubrication System
With a programmable lubrication system, the accurate control of PLC ensures balanced lubrication of the machine.
03
Vacuum Pump
Adopt imported equipment, improve the stability of the machine, low noise, high performance, long service life.
04
Gripper and Chain
The grippers are made of special extra hard aluminum alloy, with anode treatment on the surface, ensuring accurate die cutting and embossing, etc. at high speed. The adjustment mechanism, patent
design guarantees very accurate control. An imported chain is used for the main gripper transmission, with strength increased by 45% for accurate stability and prolonged life.
05
Electrical Cabinet
Electronic components are all world-famous, high quality ensured.
06
Plates Quick Change Device
Shorten the time for changing Plate, Improve the production efficiency.
If you want to find a reliable packaging machinery factory, please choose us,and we will be your best partner.
