GZPTS700 Series of High-speed Double-slide Tablet Press Machine

GZPTS700 series double slides high-speed tablet press machines, with the advanced modular design concept, simple structure, easy maintenance. The combination of innovative technology and intelligent control makes the tablet punching machine more powerful, has fast production speed, low working noise, stable and reliable operation. The multi punch tablet machine not only improves the production quality of drugs but also reduces the loss of raw materials, which is the best choice for pharmaceutical enterprises to carry out production technology transformation and new projects.

Specification of GZPTS700 Series of High-speed Double-slide Tablet Press Machine

Model GZPTS700 51 63 75 81

Punch &Die Type (EU) D B BB BBS

Punches Number 51 63 75 81

Max Tablet Diameter (MM) φ25 φ16 φ13 φ11

Max Abnormal Prelate Axis Size (MM) 25 18 16 13

Max Output (Tablet/h) 489600 604800 720000 777600

Max Filling depth (MM) 18

Max Main Pressure (KN) 100

Max Pre Pressure (KN) 100

Idle Load Noise dB (A) ≤85

Power 380V 50HZ 25 KW

Size L×W×H (MM) 1430×1430×2250

Weight (KG) 5800

※ Double-layer Tablet, ring tablet function or IPC control (For your Choice)

Benefit of GZPTS700 Series of High-speed Double-slide Tablet Press Machine

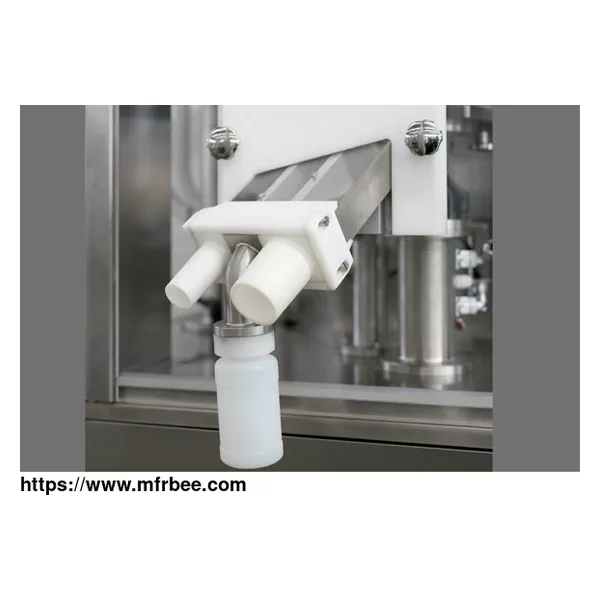

As one of the professional tablet press machine manufacturers, our tablet punching machine has a three-way outlet device for finished products, waste products and sampling, it can set automatic sampling function.

There are many pharma machine manufacturers in China, but we are one of the best choices for you.
