Computer Motherboard Cables
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 100
- Packaging
- carton
- Delivery
- 2 weeks
Specifications
Product name: Computer motherboard 24-pin 14-pin adapter cable, one end is connected to general ATX power supply 24P, the other end is connected to Lenovo motherboard 14P.
Computer motherboard wiring Features
01.
Power Supply Specifications
According to the power supply specifications defined by Intel, the cables used by all power supply manufacturers must be standardized. The color and usage of each power cable are as follows.
02.
Red
+5V signal power supply for the circuit of the mainboard, memory modules, CD/DVD drives, hard disks, and other devices.
03.
Yellow
+12V CPU and graphics card power supply. Power standard drive circuits, such as CD - ROM, hard disk motors.
04.
Orange
+3.3V is now used to power SATA hard disks, but will be used for other purposes in the future.
05.
Purple
+5V (USB) USB device power supply, support USB keyboard and mouse startup function (power supply after shutdown)
06.
Black
Ground wire (0V) is a necessary part of the power supply loop
07.
Green
PS-ON startup signal cable (when it is short-connected with the ground cable, the power will be started)
08.
Gray
Power Good monitoring line, connect the motherboard and Power supply, play the role of signal feedback
Specifications of Computer Motherboard Cables

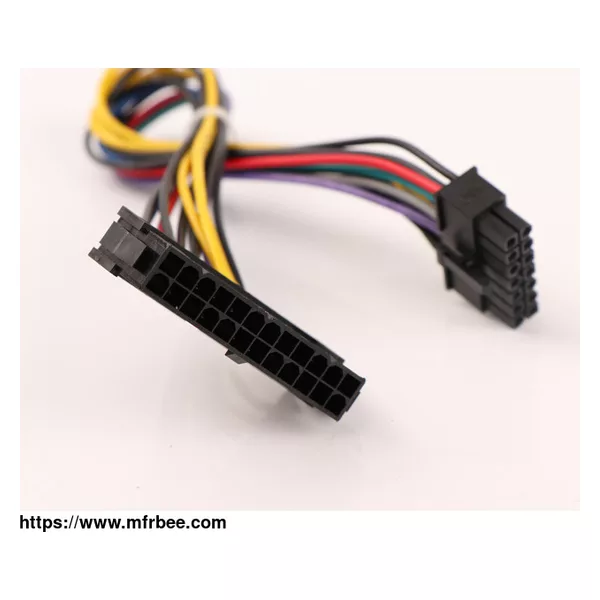

Product Name: Computer motherboard 24 pin 14 pin adapter cable.
The total length is about 15CM, one end is connected to the general ATX power supply 24P, the other end is connected to lenovo motherboard 14P. It is suitable to use Lenovo Q77/B75/A75/Q75
motherboard.
Material Description: Standard 18AWG electronic wire, green black 24PIN female head, 14PIN male head.
If you need any kinds of cable and harness, please contact us, as a professional wire harness factory, Holly Electronics is willing to offer you high quality products.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Europe
- Founded Year:2006.11.8
- Address:Address: 25-1 Nanshan Road, QuZhou city ,ZheJiang province, China(PRC)
- Contact:HOLLY HOLLY
