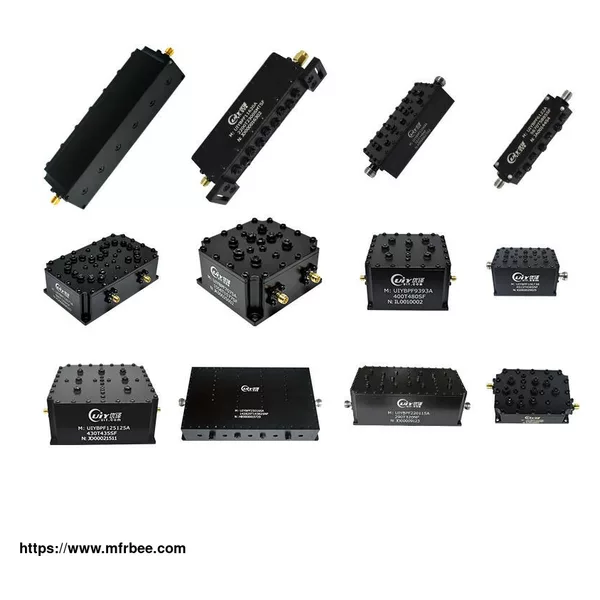

Band Pass Filter

FOB Price
USD $100.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Export Standard Carton
Delivery
15 Days
UIY RF Bandpass Filter Custom Design available:

•Band Pass FrequencyfromDC to 20GHz.

•Connector Typeoptional4.3-10 mini DIN,7/16 DIN,BNC,MCX,SMAandNwith female, jack, male, male to female and plug genders.

PowerOffered 2 Watts, 5 Watts, 10Watts, 20Watts, 50 Watts, 75 Watts, 100 Watts, 300Watts.
  • Country: China (Mainland)
  • Business Type:
  • Market:Africa,Americas,Asia,Europe,European Union,Middle East,Oceania
  • Founded Year:2003
  • Address:No.8, Lane 1, Xintun East Zone, Longgang District
  • Contact:Ms. Mollie
*Your name:
*Your Email:
*To:UIYTechnology Co.,Ltd
*Subject:
*Message:
Enter between 20 to 3,000 characters. English only.     Characters : 0 / 3000
*Enter the secure code shown below Mfrbee security Image      Reload Image

submiting now We do inquire for you , please wait ...

VHF UHF Band 225 to 400MHz Cavity Filter RF Band Pass Filters with Rejection 40dB
VHF UHF Band 225 to 400MHz Cavity Filter RF Band Pass Filters with Rejection 40dB

Model Number: UIYBPF4825B225T400SF Pass Band: 225~400MHz Insertion Loss: 1.5dB Ripple: 1.2 VSWR: 1.5 Rejection: 40dB@DC~200MHz 40dB@500~1000MHz Power:30W Connector Type: SMA-F Temperature: -40~+85°C Dimension:48*25*20mm ...

UIY Inc.

UHF Filters 758 to 803MHz RF Band Pass Filters Cavity Filters Power 20W
UHF Filters 758 to 803MHz RF Band Pass Filters Cavity Filters Power 20W

Model Number: UIYBPF110110A758T803NF Pass Band:758~803MHz Insertion Loss:1.2dB Ripple in-band:0.8dB VSWR:1.3 Rejection:25dB@703~748MHz 25dB@824~862MHz 55dB@862~4000MHz 55dB@DC-703MHz Power:20W Connector Type: N-F Temperature: -40~+85°C Dimension:110*110*43mm ...

UIY Inc.

Dot Frequency 4800MHz RF Band Pass Filters Cavity Filters
Dot Frequency 4800MHz RF Band Pass Filters Cavity Filters

Model Number: UIYBPF6060A4800SF Pass Band:4800MHz Insertion Loss:1.6dB Rejection:40dB@±40MHz 50dB@±50MHz VSWR:1.35 Power:10W Connector Type: SMA-Female Temperature: -10~+60°C Dimension:60*60*30mm ...

UIY Inc.
