601235-200mah 3.7V Lipo Battery

Minimum Order: 10

Packaging: N/A

Delivery: 15 Days

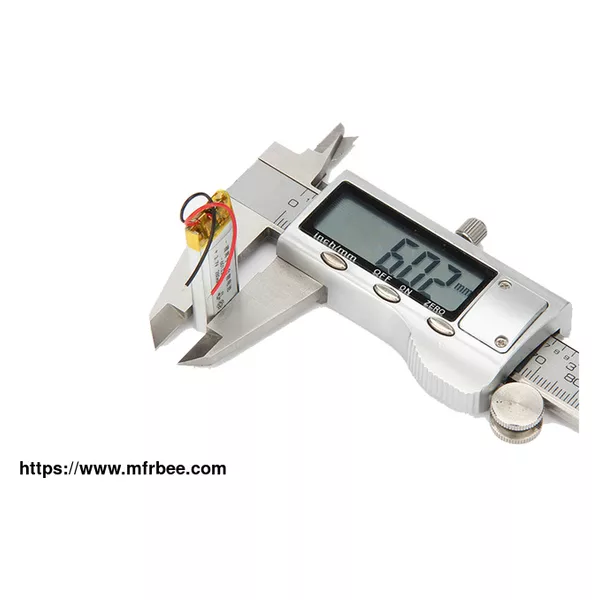

PLS601235 is with 6.0*12*35mm(T*W*L) dimension, it is a 200mah capacity rechargeable 200mah lithium battery, used for 3C digital devices, widely used for thermos cups. Your requirements of customizing size, PCB, wire, connectors are welcomed.

In our pls lithium ion battery factory, the capacity of battery li ion polymer can be customized according to your needs. And PLS Battery, as one of lithium ion battery companies, promises to offer satisfied services for customers.

Specification of PLS601235 Small 3.7 V 200MAH Lipo Battery

Item Rating Note

Model PLS601235 6.0*12*35mm

Nominal Capacity 200mAh Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage 3.70V

Standard Charge Current 0.2C 0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current 0.2C 0.2C, 3.0V cut off.

Maximum Discharge Current 200mA 1.0C , Continuous Current

400mA 2.0C , Peak Current

Weight 4.3g

Operating Temperature 0~45℃ Charge

-20~60℃ Discharge

Storage Temperature -20~45℃ 1month

-20~35℃ 3month

-20~20℃ 1year

Application Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards, thermos cups.

Country: China (Mainland)
Business Type: Manufacturer
Market:Americas,Europe,Oceania,Asia
Founded Year:2013
Address:2nd Floor, No. 4, Hebe Road, Tangxia Town, Dongguan City, Guangdong Province
Contact:plsbattery
