603450-Lipo 3.7 v 1200mah Battery

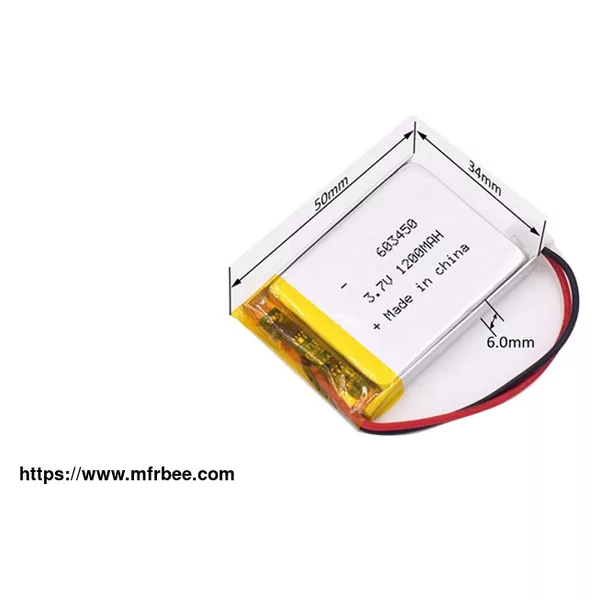

PLS603450 battery lipo 3.7 v 1200mah is with 6.0*34*50mm(T*W*L) dimension, it is a rechargeable lithium polymer battery with 1200mah capacity, which is a common produced model, usually with stock, used for 3C digital devices such as GPS tracker. Your requirements of customizing size, PCB, wire, connectors are welcomed.

PLS Battery, as one of lithium ion battery wholesale suppliers, is spaecialized in producing micro lipo 603450 battery with high performance and if you want to know more about battery li ion polymer, feel free to contact us.

Specification of PLS603450 3.7V 1200mah GPS Rechargeable 1 Cell Lipo Battery

Item Rating Note

Model PLS603450 6.0*34*50mm

Nominal Capacity 1200mAh Standard discharge, 0.2C

discharge, 3.0V cut-off

Nominal Voltage 3.70V

Standard Charge Current 0.2C 0.2C, 4.20V (CC-CV)

0.03C cut off.

Standard Discharge Current 0.2C 0.2C, 3.0V cut off.

Maximum Discharge Current 1200mA 1.0C , Continuous Current

3600mA 3.0C , Peak Current

Weight 23g

Operating Temperature 0~45℃ Charge

-20~60℃ Discharge

Storage Temperature -20~45℃ 1month

-20~35℃ 3month

-20~20℃ 1year

Application Bluetooth, wireless devices, Wearable electronics devices, Scanner, Camera, GPS, monitor, cards.
