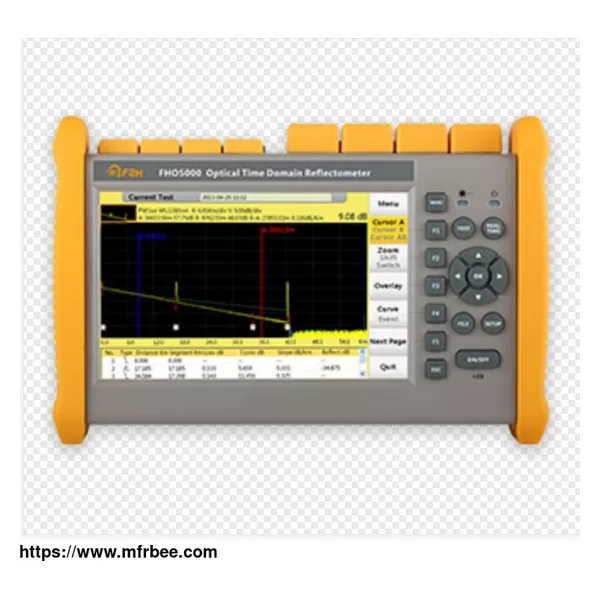

Functions
Fiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length
Multi Functions Test
One button test,real time test and fiber link map test
3×USB prot 6 hours test Built-in VFL/LS/OPM
16GBTest trace storage
200kmLong distance test
26~45dBMulti dynamic range
Humanized structure interface design
7-inchcolor touch
1mheight anti-fall
FLM test
Intelligent multi pulse width analysis, viewable dis-play of all events of optical fiber link
1m ultra short deadzone
Ultra short deadzone helps you identify short dis-
Through splitter test
Test two splitters fiber line1×4+1×16
Test one splitter fiber line
Through splitter test
Test two splitters fiber line1×4+1×16
Remote control function
Remote control of FHO5000 through Ethernet port。
OTDR Telecom report export
Easy export, report making
Suitable for variousworking environ-
Backlight adjustment, the screencan be seen clearly under strong
Multi Functions Test
Item Parameter
Pulse Width SM 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
MM 850nm: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us
1300nm: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us, 2us
Test Range SM 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
MM 850nm: 500m, 2km, 5km, 10km
1300nm: 500m, 2km, 5km, 10km, 20km, 40km, 80km
Sampling resolution Min 0.05m
Linearity 128,000
Sampling point ≤0.05dB/dB
Loss threshold 0.01dB
Loss resolution 0.001dB
Distance resolution 0.01m
VFL ±(1m+Test distance×3×10 -5 +Sampling resolution) （excluding IOR uncertainty）
Distance accuracy ≥ 160000 curves
Data storage 10mW, CW/2Hz
Interface RJ-45, 3*USB（Type A×2, Type B×1）
Display 7 inch TFT-LCD（Touch screen is optional）
Battery 7.4V/4.4Ah lithium battery（with air tracffic certification）, 6 hours continuous working
Temp Work Temp: -10℃~+50℃: Storage Temp: -20℃~+70℃
Humidity ≤ 95%（no-condensation）
Size/Weight 253×168×73.5mm / 1.5kg（with battery）
Accessories Wrist strap, Charging adapter, Battery, USB cable, Quick guide, Carrying bag
Optional SC/LC adapter, OPM, LS, Touch screen, WiFi, Fiber microscope
Parameter
Model Wavelength Dynamic range Deadzone
FHO5000-D26 1310/1550nm 26/24dB 0.8/4m
FHO5000-D35 35/33dB 0.8/4m
FHO5000-D40 40/38dB 1/4m
FHO5000-D43 43/41dB 1/5m
FHO5000-D45 45/43dB 0.8/3.6m
FHO5000-TP35 1310/1490/1550nm 35/33/33dB 0.8/4m
FHO5000-T40F 1310/1550/1625nm 40/38/38dB 1/4m
FHO5000-T43F 43/41/41dB 1/5m
FHO5000-T45F 45/43/43dB 0.8/3.6m
FHO5000-M21 850/1300nm 19/21dB 1.2/8m
FHO5000-MD21 850/1300nm 19/21dB 1.2/8m
1310/1550nm 35/33dB 0.8/4m
FHO5000-MD22 850/1300nm 19/21dB 1.2/8m
1310/1550nm 40/38dB 1/4m
Packing list
OTDR main unit lithium battery Carrying bag
Wrist strap Charging adapter Charging cord
USB Cable Calibration Report Quick Guide
