Horizontal Axle Press
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

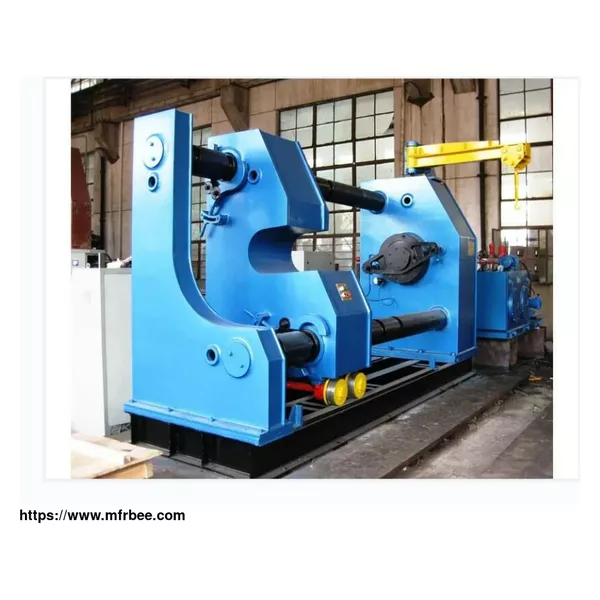

The horizontal press machine is the installation equipment for the rolling bearing of the railway vehicle system. Its main purpose is to press the rolling bearing to the wheel journal by cold
pressing. The horizontal hydraulic press machine is composed of a body, a hydraulic station, and a console. The hydraulic station and the console should be arranged close to the host. The rigid
rails on the site and the guide rails on the body should be connected evenly.
EZHONG specializes in the production of horizontal wheel and axle press equipment. As a professional wheel press machine manufacturer, EZHONG Hubei Heavy Equipment Co. Ltd has almost 70 years of
production experience and technology of wheel press machine. On the basis of absorbing foreign advanced technology, we have developed horizontal hydraulic press machine with our own
characteristics. The horizontal hydraulic press for sale is simple and convenient to operate, has high processing accuracy, and will not crush the bearings.
Horizontal Hydraulic Press Machine Specification
Model Nominal Pressure Max. Stroke Max gear Axle Diameter Pressing speed Dimension
EZY92-3150KN 3150KN 600mm 1300/350 0-4mm/s 5360x1200x2400mm
EZHONG Wheel Press Machine Details
Wheel press machine tool composition: Machine front fixed beam, movable beam, after the support, chassis, hydraulic system, car device, electrical system is composed of the main parts.
Safety protection of horizontal press machine:
1. When the system overvoltage, with pressure relay shutdown protection and overflow protection.
2. Install an emergency stop button at each of the fixed beam and console locations.
3. The safety system of mechanical and electrical equipment and control conforms to the national standards of China or corresponding standards, and the safety interlock system is reliable.
4. The oil is cooled by air. When the oil temperature reaches 60 °C, the horizontal hydraulic press machine will automatically alarm and stop.
Horizontal Press Machine Optional Features
1. The horizontal hydraulic press for sale has independent power mechanism and electrical system.
2. The horizontal press machine adopts button centralized control.
3. Process action is controlled by PLC.
4. The wheel press machine can realize two operation modes of inching and semi-automatic.
Notes Of EZHONG Horizontal Hydraulic Press Machine Operation Process
1. Check whether the horizontal hydraulic press brake is placed horizontally and the power supply is safe.
2. Check whether the hydraulic oil is in place and the circuit is not damaged.
3. Start the motor and check whether the rotation direction of the motor is correct.
4. Jog the hydraulic system to check that there is no leakage or abnormal sound in the hydraulic system.
5. Run the horizontal hydraulic press system with an empty vehicle to drain the air in the system.
6. Adjust the workbench according to the motor stator, press-fit and debug, so that the horizontal hydraulic press machine meets the press-fit requirements.
7. After the normal press-fitting work, pay attention to the maintenance of the horizontal bending press machine.
8. This bending press machine produced by our company requires a relatively high press-fitting accuracy, and the equipment is equipped with a pressure and stroke tester.
You can see the progress of the press on the screen, which is very accurate. In addition to the equipment's own program control, the requirements of the operator must be serious. To improve
For the service life of the wheel press machine, we must strictly operate the wheel press machine correctly.
The Advantages Of Horizontal Press Machine
The operation of our horizontal press brake for sale is simple and convenient, high efficiency, time-saving, labor-saving, and cost-saving.
The high precision of press-fitting concentricity ensures a high qualified rate of products produced.
The stroke of the horizontal hydraulic press machine can be adjusted according to the large size of the press-fitting parts, no matter how big the product is, it can be press-fitted.
As a professional wheel press machine manufacturer, our equipment pressure can be adjusted at any time, and the user can adjust the pressure system of the horizontal hydraulic press machine
according to the approximate pressure required by the press.
The professional hoisting structure is made to facilitate the movement of the wheel press machine at any time.
All kinds of fixtures are equipped at the factory, which is convenient for users to press-fit all kinds of axles and bearings.
The horizontal press brake for sale is at a good plate bending machine price.
The whole machine adopts integral steel plate welding, which is thick and beautiful, and has good stability.
What is Hydraulic Press Machine Used for?
This wheel press machine from EZHONG wheel press machine manufacturer is suitable for metallurgy, mine machine repair, machine manufacturing and large motor manufacturing, mainly used for large
shaft parts of the pressure assembly and disassembly work.
