Diaphragm Pressure Gauges
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Diaphragm type pressure gauges are available from many different materials, including 316 SST, Hastelloy C, MONEL, TEFLON and many others. For gaseous and liquid, aggressive and highly viscous or
contaminated media, also in aggressive ambience
Process industry: Chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology, machine building and general plant construction.
Types of Diaphragm Pressure Gauge Wholesale
High Quality all Stainless Steel I Shape Diaphragm Pressure Guages
High Quality all Stainless Steel Pressure Gauges with Diaphragm Seal
High Quality all Stainless Steel Sanitary Diaphragm Pressure Gauge
Diaphragm Sapsule Low Pressure Gauges with All Stainless Steel Material
All Plastic Diaphragm Seal Pressure Gauges
4 Inch Flush Diaphragm Seal Pressure Gauges
Special Type Hastelloy C Diaphragm Seal Pressure Gauge

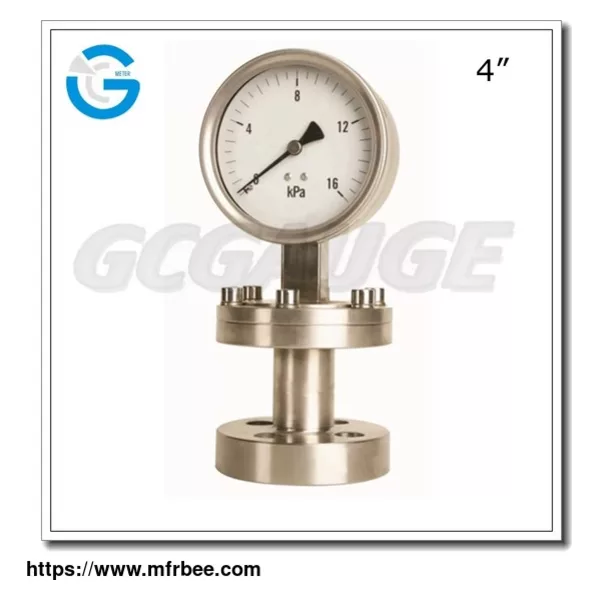

4 Inch Diaphragm Seal Pressure Gauge with All Stainless Steel Material
4 Inch Polycarbonate Case Pressure Gauges with Diaphragm Seal
Diaphragm Pressure Gauge Working Principle
When the pressure P of the measuring medium acts on the diaphragm type pressure gauges, the diaphragm deforms and compresses the sealing liquid of the pressure measuring system of the pressure
instrument to form a pressure of P-Delta P. When the rigidity of the diaphragm seal type pressure gauge is small enough, Delta P is also very small, and the pressure formed by the pressure
measuring system of the pressure meter is close to the pressure of the measuring medium.
What is Diaphragm Seal Type Pressure Gauge?
The diaphragm seal type pressure gauge is composed of a diaphragm isolator and a universal pressure gauge to form a system of diaphragm type pressure gauge. The connection between the gauge
diaphragm seal and the equipment mainly includes threaded connection, flange connection, and sanitary clamp type. The diaphragm seal type pressure gauge working is suitable for measuring the
pressure of the medium with strong corrosion, high temperature, high viscosity, easy to crystallize, easy to solidify, and solid floating matter. It is necessary to prevent the measuring medium
from directly entering the general pressure instrument and prevent the accumulation of sediment and easy to clean.
FAQ of Diaphragm Pressure Gauges
QWhat is the difference between gauge diaphragm seal and other pressure gauges?
When the measured medium is very corrosive (such as hydrochloric acid, wet chlorine, ferric chloride), has a high viscosity (such as latex), easy to crystallize (such as salt water), easy to
solidify (such as hot asphalt), there is a solid floating matter (such as sewage), SUS316 stainless steel pipe will also be corroded by hydrochloric acid. The floating matter in asphalt and sewage
will quickly block the pressure guide hole of the pressure gauge, and make the meter lose its function. Diaphragm type pressure gauge can solve these problems. People can choose different
corrosion-resistant diaphragm materials according to different strong corrosive media to play a role in corrosion protection.
QWhat situation dose a diaphragm vacuum pressure gauge work?
The diaphragm type pressure gauge is mainly used in petroleum, chemical, chemical fiber, dyeing, pharmacy, soda food and other industrial sectors.
QWhat is the diaphragm pressure gauge price ?
Our company can provide users with a good diaphragm seal type pressure gauge selection program and provide preferential products while at a preferential price. At the same time, according to user
needs, the prices differ in accord with the design and manufacture of special purpose pressure gauge products.
There are many hydraulic gauges suppliers, but we are one of the best choices for you.
