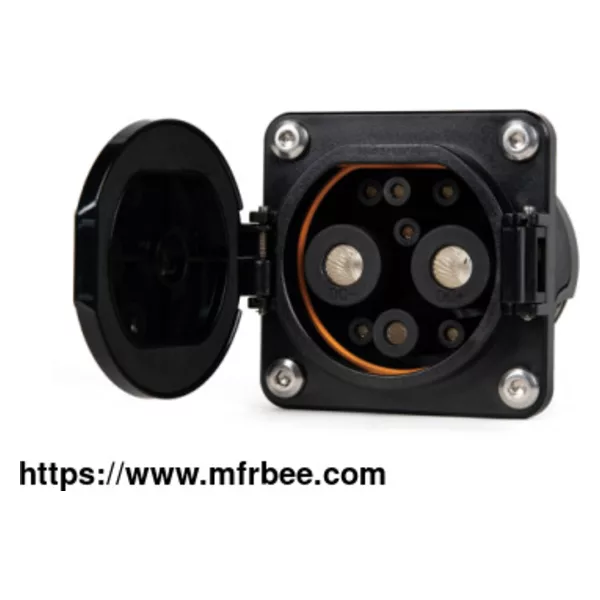

GB/T EV DC Charging Socket
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Mechanical Life
lMechanical life: no-load plug>10000times
lInsertion force: <140N
Applied Material
Shell material: thermoplastics, flame retardant grade UL94-0
Contact-tube: Copper alloy, silver-plated
Environmental Performance
Operating temperature: -30℃~+50℃
Electrical Performance
The rated current:80A, 125A, 200A, 250A
The rated voltage: 750V/1000V
Insulation resistance: >2000MΩ(DC1000V)
Pins temperature rise: <50K
Withstand voltage: 4500V (DC+/DC-/PE)
Contact impedance: 0.5mΩMax
Features of GB/T EV DC Electric Car Charging Sockets
Conform to the provisions and requirements of GB/ T 20234.2-2015.
Have one or two PTC (PT1000) thermistor (can match with hela lock) ,have functions of signal feedback.
Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it.
Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof.
Excellent protection performance, prodection grade achieved IP55 (working condition).
GBT EV DC Electric Car Socket Types Parameter
Product Type Rated Current Cable Specifications Note
AG-GBDC-C80S 80A H07BZ5-F2X20mm2+1x25mm2+2x4mm2+8x0.75mm2 Wire length and tail end treatment according to customer configuration.
AG-GBDC-C125S 125A H07BZ5-F2X35mm2+1 x25mm2+2x4mm2+8x0.75mm?
AG-GBDC-C200S 200A H07BZ5-F2X70mm2+1x25mm2+2x4mm2+8x0.75mm2
AG-GBDC-C250S 250A H07BZ5-F2X95mm2+1x25mm2+2x4mm2+8x0.75mm2
As one of ev charging point manufacturers, we can offer sorts of type 2 charging socket for sale, anything you need, please leave us a message.
