Product description

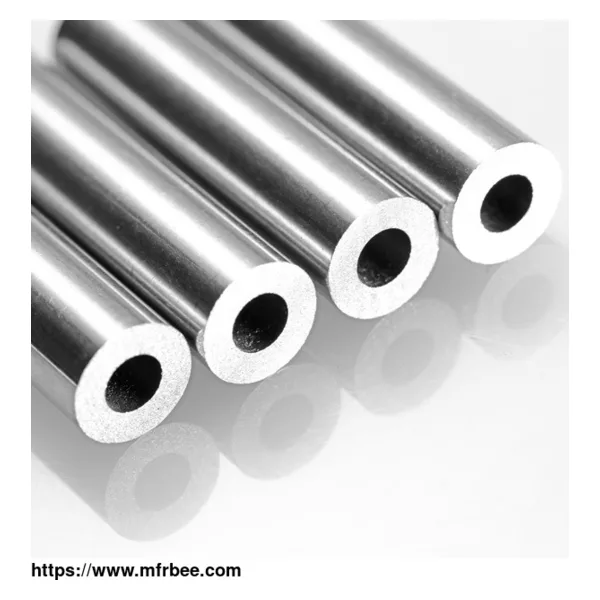

Hydraulic Tubing Description
Huashang Hydraulic tube in a comprehensive range of corrosion-resistant stainless steels and nickel alloys protecting outdoor diameters from (OD) 2.0 to 38 mm. All sizes are provided with clean
surfaces and shut dimensional tolerances reducing the risk of leakages when connecting tubes with couplings.
HUASHANG stainless steel hydraulic pipe length is straight, but our tubes can additionally be delivered as coiled tubing, contributing to reduced installation costs. HUASHANG is one of professional
hydraulic tubing suppliers , whose hydraulic tubes are characterized by using high cleanliness, and tubes with OD large than 5 mm are delivered with plugged ends for transport protection towards
inside contamination.
Hydraulic tubes pipes are applied to many industries, such as instruments and meters, petroleum, medicine, chemical industry, water purification, gas and pressure vessel. For our hydraulic tubing
steel for sale, in order to ensure the quality of the instrumentation tube, we will be according to the standard to do an inspection, such as chemical analysis, tensile, hardness, flattening,
flaring, corrosion, and hydrostatic.
Material of 1/2 Stainless Steel Hydraulic Tubing
Autenitic Stainless steel:
TP304, TP304L, TP304H, TP316/TP316L, TP316H, TP316Ti, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.
Duplex&Super Duplex steel:
S31803, S32205, S32750, S32760.
Nickel alloy steel:
N06600, N06601, N06625, N07718, N08800, N08825, N010276, N04400, N05500, N08020, N08028
Hydraulic Tubing Standard
EN10216-5TC1, ASTM A789, NACE MR0175/ISO 15156, ISO6207, ASTM B444 GRADE 1 & GRADE2, ASTM SB444 GRADE1&GRADE2, ASTM B668, ASTM A213, ASTM A269, EN10216-5
Hydraulic Tubing Sizes
OD Range: 2.0mm--38mm
Wall Range: 0.08mm--5.00mm
Length: Cut to length by client request
Typical size & tolerence
Production name OD/mm OD tolerance/mm W. T tolerence％ OD=Outsize Diameter
Instrumentation tubes <4.76 0.08 -10
<2.38 0.05 -10 W.T=Wall Thickness
6.0-30.0 -0.08 -10
32-38 -0.15 -10
Application Areas
Oil & Gas
The Huashang program includes a wide range of merchandise for use in oil refining, petrochemical processing and gasoline processing. One of our specialties is tubular merchandise in corrosion
resistan...
Deckle
Papermaking enterprises are the users of the products of papermaking machinery enterprises. Huashang can provide papermaking enterprises with necessary equipment and spare parts, and has many years
of...
Aerospace
HUASHANG Aerospace tubing are used for two fuselage and instrumentation and Helicopter systems.
