Construction is as follows

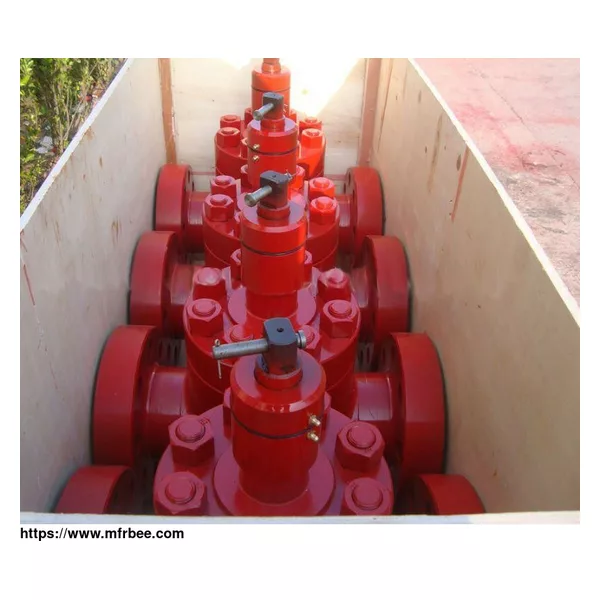

Name | API6A GATE VALVE |
1.Size | 1/13-16\"~7-1/16\" |
2.Pressure | 2000PSI~20000PSI |
3.Material | AA. BB. CC. DD. EE. FF. |
4.Product Specification Level | PSL-1 ~ PSL-3,NACE MR 0175 |
|
Structure
-Forged body & bonne |
-Low operation torque |
-Metal-to-metal body/bonnet seal |
-Metal-to-metal backseal seal can be energized |
-Metal-to-metal backseal seal can be energized regardless of gate position |
|
Main parts & Materials
API 6A Materials
Classification. |
Body & Bonnet
Material |
Stem
Material / Coating |
Gate
Material /Coating |
Seat
Material /Coating |
AA-General Service | Low Alloy Steel | AISI 41 XX Nitrided | AISI 41 XX Nitrided | SI 41 XX Nitrided |
BB- General Service | Low Alloy Steel | AISI 41 XX Nitrided | AISI 41 XX Nitrided | Stellite TM 3 |
CC- General Service | 4A | AISI 410 SS | AISI 410 Nitrided | Stellite TM 3 |
|
Product Description SPECIFICATION: Manufactured and Tested in Accordance with API Spec 6A Forged Steel Body and Bonnet API 6A PSL 1, 2 and 3 available Valve seat and gate are sealed by Metal to Metal Sealing Low Operating Torque Quick Release Hand Wheel Factory Pressure Tested ...
The choke valve, a main component of Christmas tree, is design to control production rate of the oil well, with working pressure up to 15000psi. Choke valves can be classified as follows: adjustable choke valves and positive choke valves. By rotating hand wheel to move the ...
