Booster Module

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

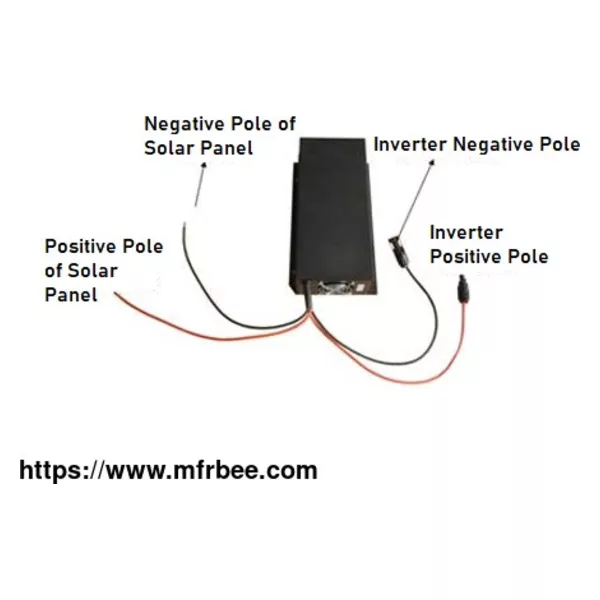

In solar pump system, if the pump power is small, only a few solar panels are needed to drive the water pump. However, the voltage of several solar panels cannot meet the voltage of the water pump inverter micno, resulting in the need for more solar panels. In this case, the energy of the solar panel is wasted and the cost of the entire system is increased. In the end, the pv power booster low-voltage starting device (LV60-90) and (LV40-70) have been developed, which can convert low-voltage DC into high-voltage DC to meet the starting voltage of the solar pump inverter, while avoiding the danger of high-voltage DC of solar modules.

Features of Boost Power Module

LV40-70 design for (3phase /1 phase220Vac) inverter, input voltage range :40 to 70Vdc.

LV60-90 design for (3phase 380Vac) inverter, input voltage range :60 to 90Vdc.

low voltage drive device is specially for small power solar pump inverter with low current and high voltage.

Input voltage is DC60-90V or DC40-70 can work normally, output voltage is 5~7 times of input voltage. Output voltage changes according to input voltage so that solar pump inverter can track the maximum power of PV array.

We can offer sorts of solar panel booster, solar energy booster, solar voltage booster, solar power booster for sale, if you have needs, please contact us.

Shenzhen MICNO Electric Co., Ltd. has been a public company of NEEQ in China with stock code 839477, which specializes in R&D, manufacture, sale and service of AC drive/VFD/VSD, Solar pumping inverter and other industrial automation products. The products cover 220V, 380V, 460V, 525V, 660V voltage level with 0.4kW-1.6MW power range, which are widely used in electric power, metallurgy, petroleum and chemical, mining, textile, printing and packaging, plastic, hoisting, solar agricultural irrigation etc.
