Tobee® shijiazhuang slurry pump slurry handling pumps
Product Quick Detail
- FOB Price
- USD $5,400.00 / Piece
- Place Of Origin
- 中国
- Capacity
- 86.4-198m3/h
- Speed
- 1000-2200rpm
- Eff.
- 71%
- Minimum Order
- 1
- Size
- 4" x 3"
- Head
- 9-52m
- NPSHr
- 4-6m
- Power
- Max.60kw
- Packaging
- Wooden
- Delivery
- 30 Days
Specifications

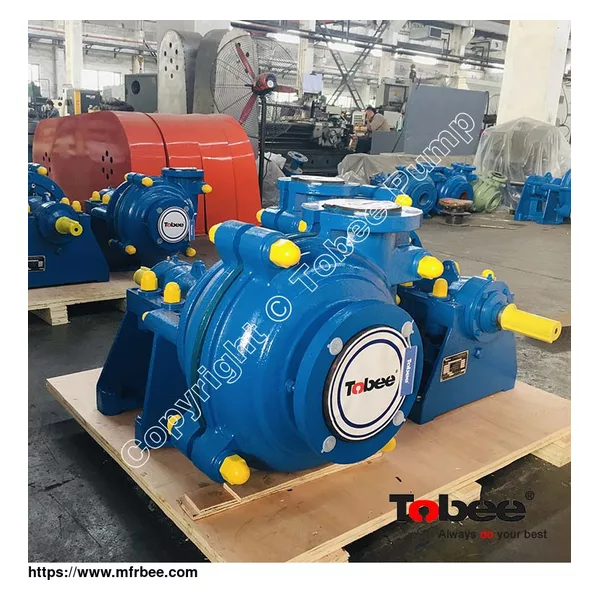

4x3D-AH Slurry Pump is a standard horizontal dewatering pump for pumping abrasive slurries, designed for ultra heavy duty applications such as mill discharge, process plant and tailings, high pressure pipelines, as well as other specialty applications.
Bearing assembly use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. Bearings use grease lubrication. The shaft seal could use the packing seal, centrifugal seal and mechanical seal. The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices. Wide performance, good NPSH and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance
Tobee® 4/3 D AH Slurry Pump Performance Parameters:
| Model |
Max. Power
(kw) |
Materials | Clear Water Performance |
Impeller
Vane No. |
|||||
| Liner | Impeller |
Capacity Q
(m3/h) |
Head H
(m) |
Speed n
(rpm) |
Eff. η
(%) |
NPSH
(m) |
|||
| 4/3D-AH | 60 | M | M | 97.2-198 | 9-53 | 1000-2200 | 71 | 4-6 | 5 |
Tobee® 4/3 D AH Slurry Pumps Applications:
The 4/3 D AH Slurry pumps are widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for transportation of abrasive solid slurry.
√ Mining & Mineral Processing (Gold/Copper/Iron Ore/Lead & Zinc/Tin/Wolfram etc.)
√ Environmental Water & Sewage Treatment
√ Power & Oil (Bottom ash, lime slurry for FGD)
√ Chemical Industry (Phosphate/Potash/Chemical Fertilizer etc.)
√ Food and Other Industry (Sugar/Paper & Pulp/Tobacco)
√ Dredging (Sand & Gravel)
