Tobee® solid waste pump China centrifugal dewatering slurry pump

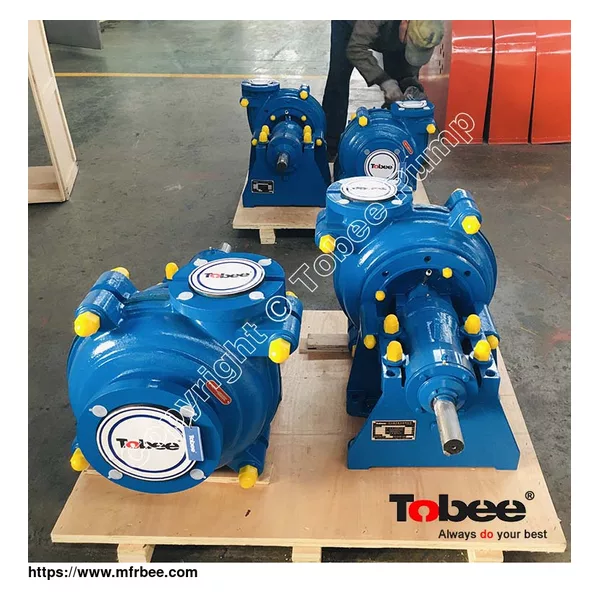

3/2C-AH Slurry Pump is a heavy-duty slurry pump that designed to handle the most abrasive and dense slurries. The 3/2C-AH slurry pump offers users a wide range of seal and liner configurations, allowing the pump to be fully customized to meet any specific application requirements. 3/2C-AH slurry pumps offer unmatched power consumption, long component life, and unmatched reliability.

Design Features:

√ Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.

√ Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.

√ Casing – casing halves of cast or ductile iron provide high operating pressure capabilities.

√ Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

√ Throat bush – wear is reduced and maintenance simplified by the use of tapered

Tobee^® 3/2 C AH Slurry Pumps Performance Parameters:

Tobee^® 3/2 C AH Slurry Pumps Applications:

3/2 C AH Slurry Pump is suitable for processing the high abrasion slurry or the material containing solid particles.

Metal smelting plant: convey slurry.

Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants.

Coal preparation plant: classifying, screening and conveying heavy medium, conveying coal pulp.

Ceramics and glass factory: porcelain clay and sandstone transportation, feeding hydrocyclone and effluent disposal etc.

Steel works: conveying slurry, rust and corrosive liquid etc.

Irrigation systems and dredging: silt removal in dams and river bed, sand classifying.

Note: please specify if applied where oil and chemicals are contained.
