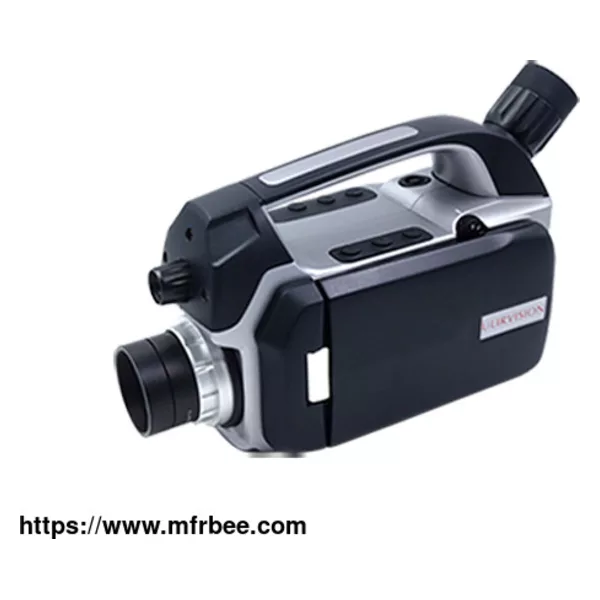

Overview of HD Thermal Imager Camera
The TI400S|TI600S HD heat vision camera adopts 384×288|640×480 high pixel aSi micro-heat detector. With its excellent imaging quality, friendly user interface operation and rich temperature
measurement functions, this smart thermal camera can meet the strict testing requirements of infrared thermal imaging experts. In addition, its flexible and rotatable touch screen and ergonomic
appearance design can reduce the workload and help users to easily cope with the testing task.
Features of TI400S/TI600S High Definition Thermal Imager, High Definition Thermal Camera
Thermal imaging camera
Flexible angle easy to rotate
Accurate temperature measurement
Ergonomic design HD touch screen
Wifi bluetooth high-speed connection
ULIRVISION TI400S/TI600S infrared thermographic imaging camera is sure to provide reliable performance for your work.
Technical Specifications of TI400S/TI600S HD Thermal Camera
Item TI400S TI600S
Detector Data
Type Uncooled FPA
IR resolution 384×288 640×480
Pixel pitch 17μm
Spectral range 7.5~14μm
NETD/Sensitivity 50mK 40mK
Lens
FOV 24°×18°
IFOV 1.2mrad 0.68mrad
Focus Auto/Motor/Manual
Lens(optional) 47°×35°/50cm、12°×9°/1m、6.3°×4.7°/4m 45°×33°/50cm、12°×9°/1m、6.2°×4.7°/8m
Image Performance
Display 5”,270° rotatable LCD,800×480 pixels
Applications of TI400S/TI600S Thermal Scanner Camera
With its excellent performance, our TI400S/TI600S thermocamera is widely used in the following fields:
Building Diagnostics
Electrical/Mechanical Inspection
Research & Development
Automation Applications
Preventative & Predictive Maintenance
As a reliable infrared equipment manufacturer, we will provide more kinds of related products for sale, anything you need, please contact us.
