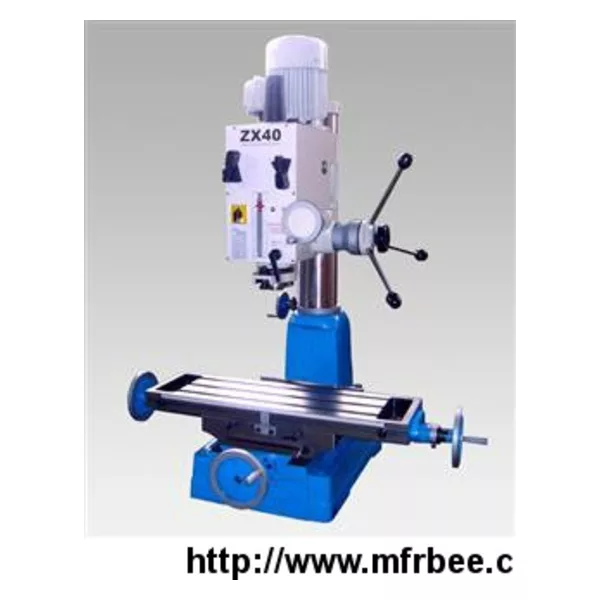

Drill Mill Machine ZX40
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Item ZX40
Max. Drilling dia (Steel/Iron) 31.5/40mm
Max.mill capacity(face/end) 80/32mm
Spindle taper MT3/MT4/R8/ISO30
Worktable size 730×210mm
Worktable travelX/Y 500/230mm
Head tilt left right 90°
Spindle box swivel degree 360°
Spindle travel 130mm
Spindle nose to worktable 470mm
Spindle speeds(option) 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp
Motor 1.1kw
N.W/G.W 270/300KG
Packing size(L×W×H,enclude foot) 820×760×1150mm
