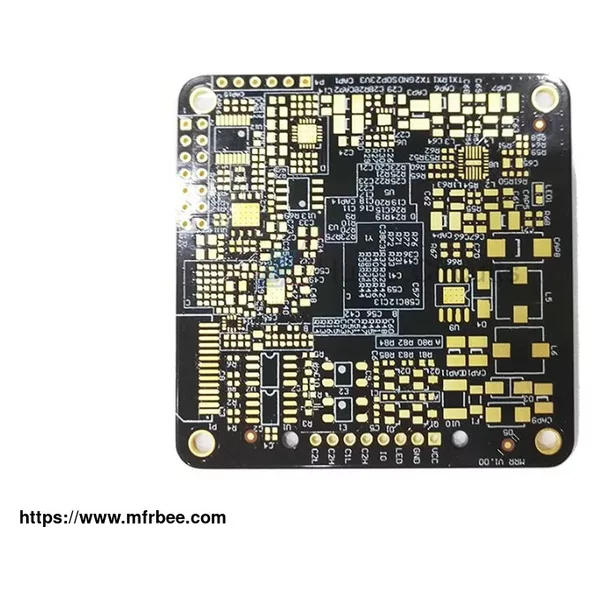

2 Layer Taconic ENIG PCB

Minimum Order
1
Packaging
N/A
Delivery
15 Days


Number of layers: 2
Surface finish: ENIG
Base material: Taconic TLY-5A
Min. hole diameter: 0.3mm
Outer Layer W: 1.046mil
Outer layer S: /mil
Thickness: 0.94mm

Advantages Of 2 Layer Taconic PCB
Own lamination process to convenient production for Multilayer pcb product and shorten the lead time.
Jiangxi facility is environmental-friendly approved by the government .
Famous raw materials brand, Kingboard, Shengyi, ITEQ, Taiyo, Guangxin.
Highly automated production line with AIO Optical Scanning, Electroplating Automatic Line, High-speed flying probe test machines and inkjet printer.
Engineers with more than 15 years of experience
The management level is highly educated, 30% have professional titles and more than ten years of work experience.
High staff stability, low mobility.
UL/ISO9001/SGS/IATF16949/ROHS/ISO1400 certificated.
Sales office in Shenzhen and own 12,000sqm factory in Jiangxi.
Establish an e-commerce system to reduce transaction costs and increase market response speed.

As a pcb builder, we will do our best to meet all the needs of clients.
