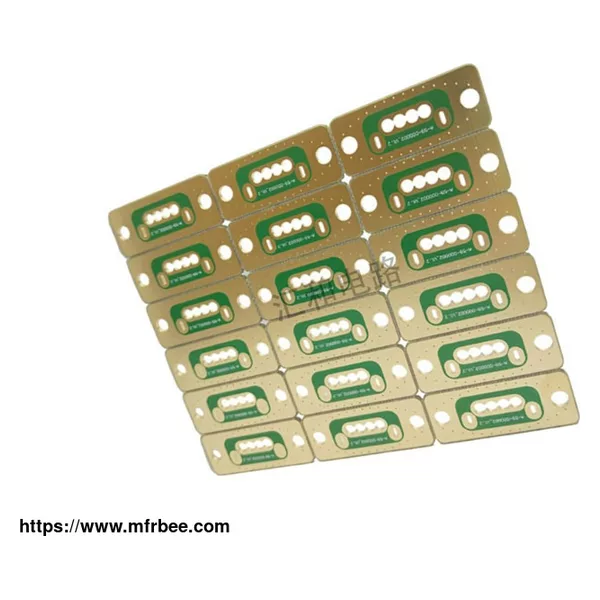

High Tg PCB
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
PCB High TG, electric circuit board Glass transition temperature Tg≥170℃, electric pcb circuit board High heat resistance is suitable for lead-free process, electric circuit board Used in
instrumentation, microwave radio frequency equipment. HUIHE CIRCUITS High TG PCB has passed ISO9001 / ISO13485 /IATF16949 / UL/RoHS /REACH certification.
High PCB Tg List
10 Layer High TG ENIG Impedance Control PCB
2 Layer High TG ENIG Prototype PCB
4 Layer High TG ENIG Impedance Control PCB Service
2 Layer High TG ENIG PCB
4 Layer High TG ENIG Impedance Control PCB
4 Layer High TG Impedance Control Fine Pitch PCB
6 Layer High TG ENIG PCB Fabrication
6 Layer High TG ENIG PCB
What Is A High TG PCB?
Usually PCB circuit boards with Tg ≥ 170°C are called high Tg circuit boards. Generally, the PCB TG of the plate is above 130 degrees, the PCB high TG is generally greater than 170 degrees, and the
medium Tg is about greater than 150 degrees. The Tg of the substrate is increased, and the characteristics of the heat resistance, moisture resistance, chemical resistance, and stability of the
circuit board will be improved and improved. TG [TG: The highest temperature at which the base material maintains rigidity (℃)],The higher the value, the better the temperature resistance of the
board.
Advantages Of Using High Tg PCB?
PCB substrate materials will soften, deform, melt and other phenomena at high temperatures, and at the same time, they will also show a sharp decline in mechanical and electrical properties for
different types of pcb boards. Therefore, the difference between general FR4 circuit board and high Tg FR-4 is the mechanical strength, dimensional stability, adhesion, water absorption, thermal
decomposition, There are differences in various conditions such as thermal expansion, and high Tg products are obviously better than ordinary PCB substrate materials.
As a pcb supplier, we will do our best to meet all the needs of customers.
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:2017
- Address:Building 2, Xinda Park, Lvyuan Road, Xinfeng County, Ganzhou 341600, Jiangxi
- Contact:Huihe Circuits
