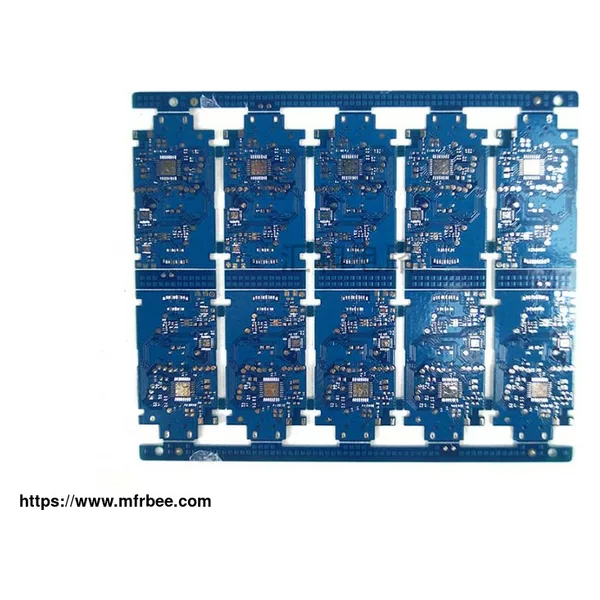

Impedance Control PCB

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Impedance Control PCB , pcb circuit strictly control the trace width, thickness and dielectric thickness, pcb circuit tolerance of impedance trace ≤±5% is better for impedance matching, pcb circuit apply to High-frequency/high-speed devices and 5G communication equipment. HUIHE CIRCUITS Impedance Control PCB has passed ISO9001 / ISO13485 /IATF16949 / UL /RoHS / REACH certification.

Impedance Control PCB List

4 Layer ENIG Impedance Control Multilayer PCB

4 Layer ENIG Impedance Control Multilayer PCB Board

4 Layer ENIG Impedance Control PCB Board Manufacturing

4 Layer ENIG Impedance Control PCB board service

4 Layer ENIG Impedance Control PCB

4 Layer LF-HASL Impedance Control PCB factory

4 Layer LF-HASL Impedance Control PCB

6 Layer ENIG Impedance Control PCB

Classification Of PCB Impedance

Characteristic Impedance: (Characteristic Impedance) When two conductors are insulated from the earth, the impedance between each other.

Differential Impedance: (Differential Impedance) the measured impedance between two conductors.

Factors Affecting Impedance In PCB

A: The dielectric constant (TMr) is determined by the raw material. (Plate, prepreg)

B: Circuit thickness (T): Determined by raw materials and process capability.

C: Line width (w): Determined by the customer's design manuscript and process capability.

D: Media thickness (H): Determined by the customer's design manuscript and process capability and raw materials.
