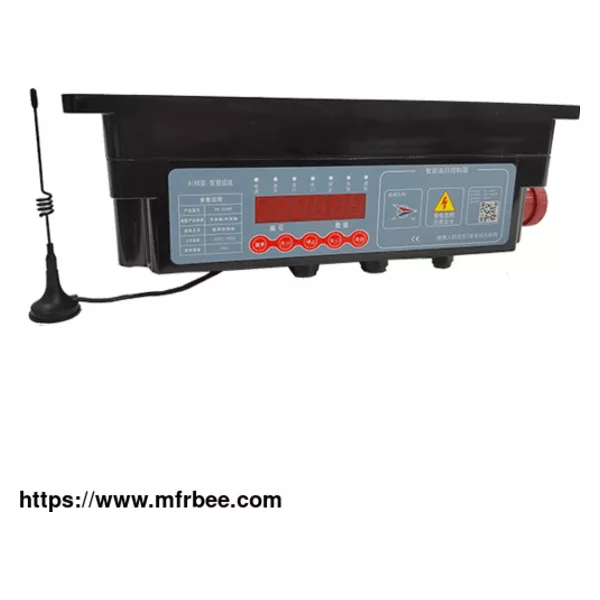

SOLAR TRACKER CONTROLLER TCU - FD1500P-24D02

Its output power 150W with string self-powered, input voltage PV string DC power supply 500-1500VDC (wide voltage input), and output voltage 24VDC, which basically match all DC motors.

Features: Matching 350W DC motor, and come with lithium battery.

Advantages: string self-powered, no external power supply, for remote terrain complex no power supply project is more suitable for high-power output and strong power.

System Datasets of Vertical Single Axis Tracker Controller TCU - FD1500P-24D02

System Datasets

Models FD 1500P-24D02

Types of tracking panel horizontal single-axis/ tilted single-axis panel

Drive systems slewing reducer + DC motor / linear actuator + DC motor

Motor power 350W

Daily power comsumption ≤0.1kWh

Types of control active tracking closed-loop control (astronomical algorithm + location feedback)

Mechanical Datasets

Sizes 345mm*182mm*120mm

Box material polymer material Makrolon®6487

Water-proof level IP65

Display interface YES

Keyboard interface YES

Electrical Datasets

Types of power supply PV series power supply (DC input) 32-48VDC (wide input voltage)

Output voltage 24VDC

Types of lithium battery 6AH（customized）

BMS battery management system YES

Wind protection YES

Nighttime reset protection YES(confirmed)

Disturbing protection YES (soft pounding protection, over current protection, over load protection)

Anti-shadow tracking YES

Wind speed protection 10m/s-30m/s（3S）（customized）

Types of communication ZigBee/LoRa（wireless）/ RS485（wired）

Angle range of tracking ±30°-±60°（customized）

Models of AI control customized

Network background customized

Work temperatures -20℃-55℃

As a solar sun tracker manufacturer, we can offer sorts of active solar tracker for sale, more details, please visit our website.
