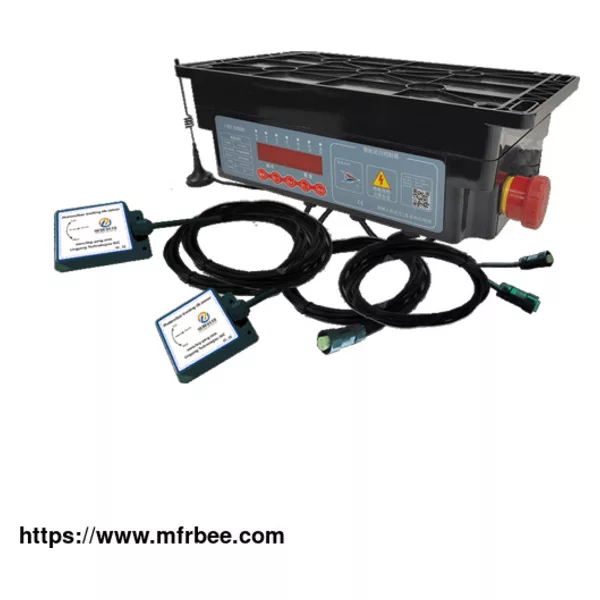

SOLAR TRACKER CONTROLLER TCU - HA 260P-24D01

Its output power in 500W with AC power supply, input voltage in 90-264VAC and output voltage 24VDC, basically matching three rows of three DC motors.

Features: Matching power of 500W DC motor, it can carry heavy loads.

Advantage: For three rows of three DC motors PV tracking system, including three controllers, closed-loop control by real-time feedback of the angle at the drive point.

System Datasets of Solar Tracker Controller TCU - HA 260P-24D01

System Datasets

Models of product TCU-HA 260P-24D01

Types of tracking panel horizontal single-axis / titled single-axis

Drive systems slewing reducer + DC motor / linear actuator + DC motor

Total rated motor output power ≤500W

Motor 3pcs

Photovoltaic arry 3 rows

Types of control active tracking closed-loop control (astronomical algorithm + location feedback)

Mechanical Datasets

Size 345mm*182mm*120mm

Box material polymer material Makrolon®6487

Water-proof level IP65

Display interface YES

Keyboard interface YES

Electrical Datasets

Power supply mode L+N（two-phases input）90-264VAC（wide input voltage）

Output voltage 24VDC

Wind protection YES

Nighttime reset protection YES (confirmed)

Disturbing protection YES (soft pounding protection, over current protection, over load protection)

Anti-shadow tracking YES

Wind speed protection 10m/s-30m/s（3S）（customized）

Types of communication ZigBee/LoRa（wireless）/ RS485（wired）

Angle range of tracking ±30°-±60°（customized）

Models of AI control customized

Network background customized

Work temperatures -30℃-70℃
