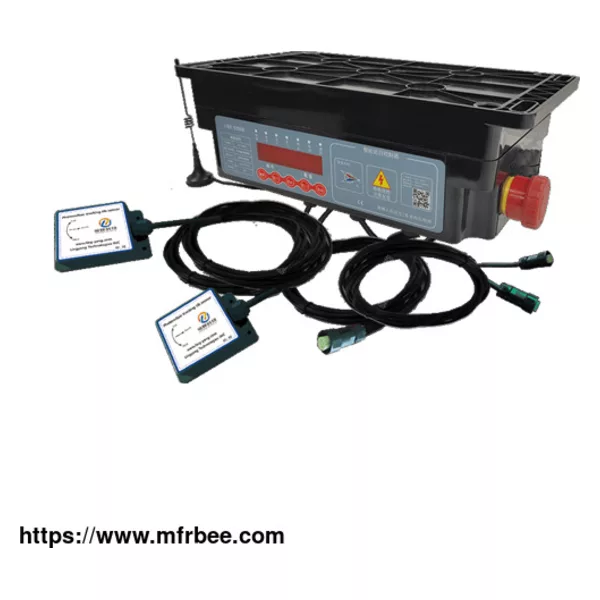

SOLAR TRACKER CONTROLLER TCU - HA 260P-24D02

Its output power in 500W with AC power supply, input voltage at 90-264VAC and output voltage 24VDC, basically matching a single row of three DC motors.

Features: Matching power of 500W DC motor, it can carry heavy loads.

Advantage: For a single row of three DC motor PV tracking system, containing one master and two slave controllers, closed-loop control is performed by real-time feedback of the angle at the drive point.

System Datasets of Solar Tilted Single Axis Tracker Controller TCU - HA 260P-24D02

System Datasets

Models of product TCU-HA 260P-24D02

Types of tracking panel horizontal single-axis / titled single-axis

Drive systems slewing reducer + DC motor / linear actuator + DC motor

Total rated motor output power ≤500W

Motor 3pcs

Photovoltaic arry 1 row

Types of control active tracking closed-loop control (astronomical algorithm + location feedback)

Mechanical Datasets

Size 345mm*182mm*120mm

Box material polymer material Makrolon®6487

Water-proof level IP65

Display interface YES

Keyboard interface YES

Electrical Datasets

Power supply mode L+N（two-phases input）90-264VAC（wide input voltage）

Output voltage 24VDC

Degree contrast YES

Intelligent motor speed regulation YES

Wind protection YES

Nighttime reset protection YES (confirmed)

Disturbing protection YES (soft pounding protection, over current protection, over load protection)

Anti-shadow tracking YES

Wind speed protection 10m/s-30m/s（3S）（customized）

Types of communication ZigBee/LoRa（wireless）/ RS485（wired）

Angle range of tracking ±30°-±60°（customized）

Models of AI control customized

Network background customized

Work temperatures -30℃-70℃
