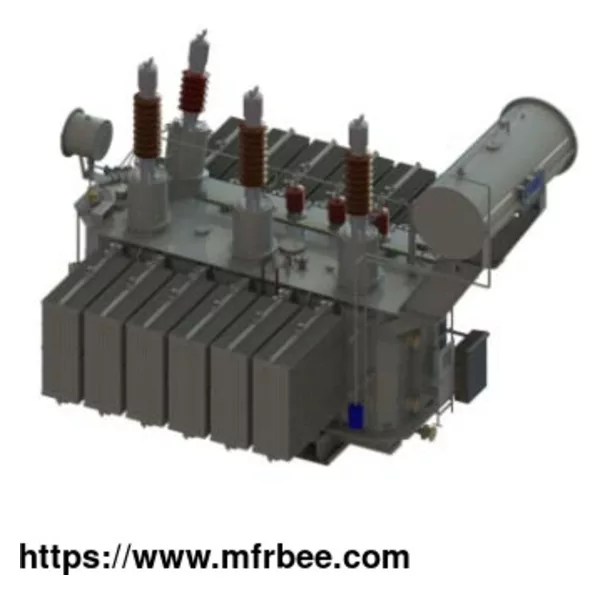

110KV Power Transformer

110KV oil immersed power transformers strictly designed and produced with the IEC standard and most advanced technology have great reputation and the best sell performance all over the world.

110KV Power Transformer Description

This oil immersed type transformer consists of core, coil, voltage regulator, oil tank, oil conservator, insulating oil and other protection and control components. The transformer is used for voltage stepping up or down and AC power transmission. The 110KV power transformer is also very important equipment for the electrical grid, power generator system, industrial and mining factory, etc. Besides, 110kv power transformer is essential equipment in the long-distance transmission of electric power, so transformer workplaces generally are some rural areas and even wastelands. These working conditions require transformers to be highly reliable. It just meets one of the most outstanding characteristics of our 110 KV transformer, in the meantime, with low loss and high efficiency, our 110kv oil immersed power transformer severs electrical transmission smoothly. And we also provides 220kv power transformer at a competive price.

110kV Power Transformer Characteristics

Good Mechanical Strength

Through software simulation, the weakness of structural parts are eliminated for improving the mechanical strength of structural parts. Manufacture by high strength steel plate. Using laser cutting equipment for processing, the deformation and stress are small.

High Earthquake Resistance

The dynamic design method is adopted for the bushing. The horizontal acceleration is set as 0.5g, the waveform is set as the resonant sinusoidal third harmonic, and the loading position is the lower end of the casing flange seat. The transformer main body adopts static design method, and the static horizontal acceleration is 0.5g.

Low Temperature Rise

The reasonable structure of oil flow distribution is adopted to reduce the winding hot spot temperature rise and average temperature rise. The winding of large capacity transformer is provided with axial oil passage. 3) Control the transverse eddy current loss of the winding.

High Resistance to Short Circuit

Short circuit mechanical force is calculated by dynamic analysis method. The self-viscous transposition conductor is used in low voltage, which effectively increases the short-circuit resistance. The machine body adopts constant pressure drying integrated type, and theintegrated assembly adopts hot suit.

110KV Power Transformer Specification

110 KV Three Phase Three Windings On-load Regulating Transformer ( ONAF )

Type Rated Capacity (kVA) Rated Voltage(KV) Connection Symbol NO-load Loss (kW) load Loss (kW) NO-load Current (%) Short-circuit Impedance (%)

SFSZ11-6300/110 6300 High Voltage H.V. YNyn0d11 9.6 44.7 0.7 For step down

SFSZ11-8000/110 8000 110±8x1.25% 11.5 53.2 0.66 H.V：-M.V:10.5

SFSZ11-10000/110 10000 13.7 62.7 0.63 H.V：-L.V:17~18

SFSZ11-12500/110 12500 Medium Voltage M.V. 16.2 74.1 0.6 M.V：-L.V:6.5

SFSZ11-16000/110 16000 38.5 ±2x2.5% 19.4 90.3 0.56

SFSZ11-20000/110 20000 22.9 106.4 0.53 For step up

SFSZ11-25000/110 25000 Low Voltage L.V. 27 126.4 0.42 H.V：-M.V:17~18

SFSZ11-31500/110 31500 6.3、6.6、10.5、11 32.2 149.2 0.39 H.V：-L.V:10.5

SFSZ11-40000/110 40000 38.6 179.6 0.36 M.V：-L.V:6.5

SFSZ11-50000/110 50000 45.5 213.8 0.34

SFSZ11-63000/110 63000 54.2 256.5 0.32

SFSZ11-75000/110 75000 61.8 305 0.3

SFSZ11-90000/110 90000 89 422 0.27

SFSZ11-120000/110 120000 122.8 608 0.22

SFSZ11-150000/110 150000 147 729.5 0.19

SFSZ11-180000/110 180000 177 875 0.17

Type Rated Capacity (kVA) Weight (Kg ) Overall Dimension (mm)

Activeparts Oil Total Transport （H） （L） （B） (T)

SFSZ11-6300/110 6300 13285 8595 28885 23750 4490 6795 4360 1435

SFSZ11-8000/110 8000 16040 9765 32635 27230 4515 6870 4330 1435

SFSZ11-10000/110 10000 17740 10580 35165 30330 4615 6875 4405 1435

SFSZ11-12500/110 12500 20865 12070 40505 34905 4760 6930 4495 1435

SFSZ11-16000/110 16000 24430 13105 45950 40545 4920 7110 4850 1435

SFSZ11-20000/110 20000 27965 13430 48555 42295 4915 7220 4815 2000

SFSZ11-25000/110 25000 30745 14000 54920 47195 5060 7295 4815 2000

SFSZ11-31500/110 31500 36745 15095 62685 53875 5125 7410 4930 2000

SFSZ114000/110 40000 44180 18335 76365 65460 5475 7545 5175 2000

SFSZ11-50000/110 50000 53780 21610 90285 77705 5550 7860 5425 2000

SFSZ11-63000/110 63000 61855 23760 100485 86790 5680 7875 5590 2000

SFSZ11-75000/110 75000 67135 25615 118080 109355 5710 8365 5690 2000

SFSZ11-90000/110 90000 86890 28430 144215 132475 5785 8020 5735 2000

SFSZ11-120000/110 120000 101445 31940 161110 156280 6015 8450 6240 2000

SFSZ11-150000/110 150000 132320 39335 184890 167525 6110 8740 6395 2x2000

SFSZ11-180000/110 180000 160870 44135 231630 191725 6310 8485 6775 2x2000

As one of transformer suppliers, we will do our best to meet all the needs of customers.
