V-shore Frame

V-Shore Frame Scaffolding is a high load conventional shoring system consisting of three major components: frames, cross braces, top & base jacks. This simple combination offers site-ready easy erection and dismantle. All the materials can be stacked and stored in order. The V-shore frame has wide application in multiplex projects.

Features of V shore Frames

Less maintenance in the future application.

Easy and compact for transportation and storage.

Can reach different shoring heights by the combination of different size frames.

Distance between frames can be adjusted with different braces to achieve other loads 35.1kN workload capacity for each leg.

Specification of V-shore Frame

No. Items Size Description

1 V Shore Frame

1219*2130(W*H) 60*3.5-Q345

2 1219*1829 (W*H)

3 1219*1524 (W*H)

4 1219*1219(W*H)

5 1219*914(W*H)

11 Cross Brace 1829*914 Q235 / ø27*1.8

12 1829*1219

13 1524*914

14 1524*1219

15 1219*914

16 1219*1219

17 Fork Head Jack L=800 Q235 / M50*4 / Cast steel nut

18 Base Jack L=800 Q235 / M50*4 / Cast steel nut

19 Base Plate L=150 M50*4

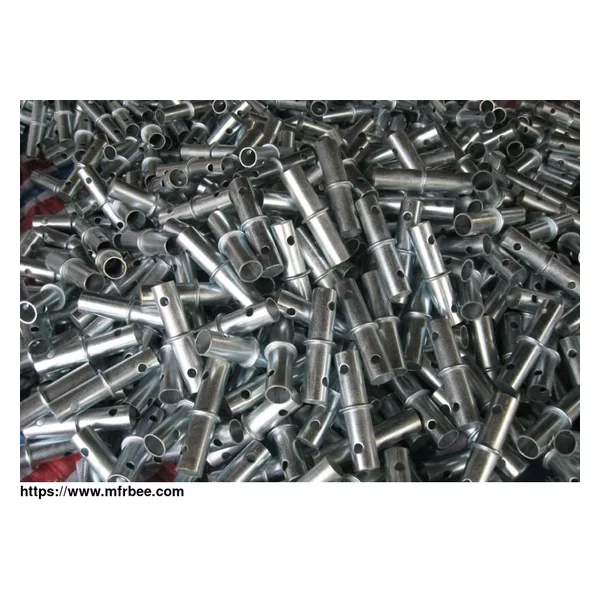

20 Connector #1 / ø48*3

Application of V-shore Frame

Residential and commercial buildings, bridges, and other heavy slabs or beams.
