Tobee® 10/8 GAH Slurry Pump Frame Plate G8032HSPRTSD21

FOB Price
USD $13,299.00 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
Wooden
Delivery
15 Days

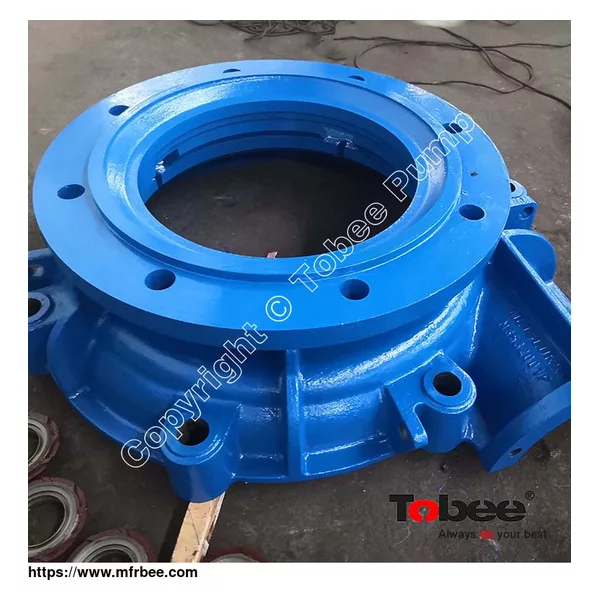

Pump Parts Frame Plate G8032HSPRTSD21

Tobee® Slurry Pump Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety. Generally, the material of slurry pump cover plate less than 6/4 size is made from Gary Iron, greater than 6/4 size is made from Ductile Iron for supporting higher pressure. For all the series-connected slurry pumps, Ductile iron cover plate is requested.

Cover Plate is in suction end of split casing slurry pump. It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.

Frame Plate
