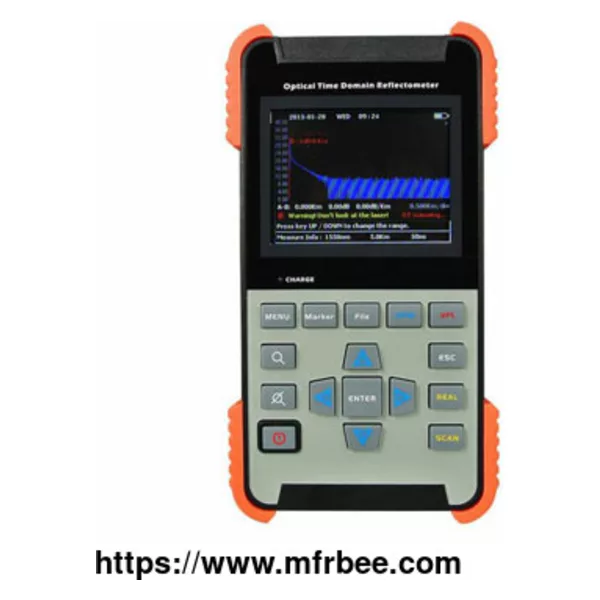

Otdr Tester for Sale-AOR500
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 5000
- Packaging
- N/A
- Delivery
- 2 weeks
Specifications
The main features of otdr for sale are: Convenient one-button testing. High-speed signal processing, less test time, and fast analysis. Color TFT LCD. USB port connects to PC. Input optical signal
auto-detection and self-protection. Built-in VFL.
Specification of fiber optic otdr tester for Sale-AOR500
AOR500-S AOR500-A AOR500-B
Wavelength 1310±20nm / 1550±20nm
Dynamic Range 24/22dB 28dB / 26dB 32dB / 30dB
Event Dead Zone < 1.5m
Attenuation Dead Zone < 8.0m
Pulse Width 10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1000ns,2500ns,5000ns, 10000ns
Distance Uncertainty ±(1.0m ± 0.005% * testing distance ± resolution)
Linearity ±0.05dB/ dB
Loss Resolution 0.001dB
Distance Resolution 1m
Connector FC (optional: SC, ST, LC)
VFL 1mW
Data Storage > 10000 traces (standard 1GB SD card)
Display 3.5 inch TFT color LCD
Interface USB
Battery Built-in rechargeable battery
Working Time >10 hrs (Bellcore TR-NWT-001138)
Operating Temp -10 -- +50 ℃, < 90%RH
Storage Temp -20 -- +60 ℃, < 90%RH
Net Weight 0.9 Kg
Dimension 230mm×120mm×60mm
There are many fiber optic accessories suppliers, but we are one of the best choices for you.
