6-8m Bus Front Air Suspension System

6-8m Bus Front Air Suspension System

Port: Shanghai, China

Production Capacity: 100000 Axles/Year

Payment Terms: T/T; L/C

Material: Rubber+Steel

Certification: ISO/TS16949

Warranty: One Year or 10,0000 km

Type: Independent Air Suspension

MOQ: 5 sets

Application: 6-10m bus front axle

OEM/ODM Yes

HS Code： 87088090

Transport Package： Wooden Case

Delivery: About 20 ~ 30 Working Days

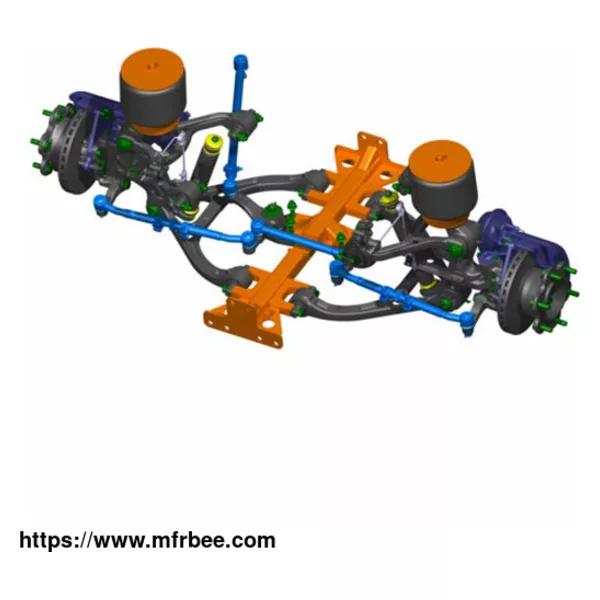

Air ride front suspension manufacturer Komman independent front air ride suspension system is for Commercial Vehicle application AFD035 series independent suspension system, the basic structure of this air suspension adopts double wishbone structure, which is suitable for full-load chassis and girder frame; the suspension guide element and steering system are integrated through the lower longitudinal beam to ensure installation accuracy and ensure Four-wheel alignment parameters.

Main Technical Parameters of 6-8m Bus Front Air Suspension System

Komman Model AFD035 Series Front Independent Suspension System

Rated Load 3500KG

Brake Specifications 19.5"

Axle Travel 165mm（+80/-85)

Airbag Installation Height 240mm

Tyre Model 215/75 R17.5or 235/75 R17.5

Front-wheel Positioning Parameters Toe：（0-2）mm

Caster angle：3.5˚±30′

King pin inclination：8.5˚±30′

camber angle：0.5˚±20′

Komman is a professional air suspension company, we provide front airbag suspension kit, front air bag suspension for trucks, air bag suspension wholesale and etc. For more information, please feel free to contact us!
