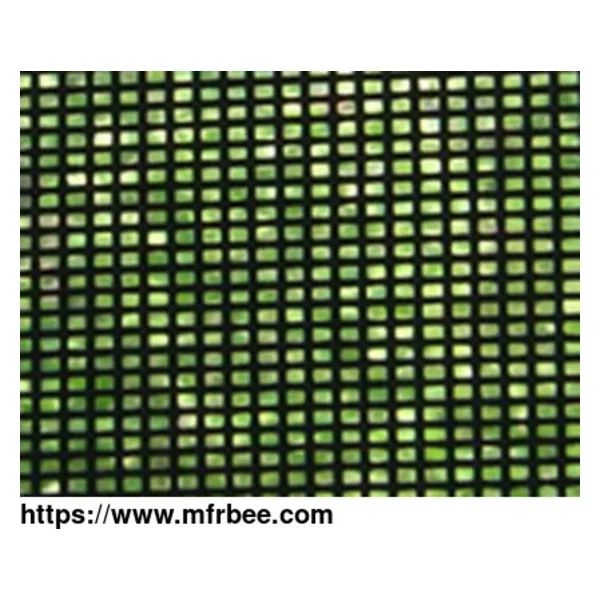

Tuff mesh with vinyl powder coating can be used for porch screen, window screen, door screen, pet screen and security netting. Woven by high tensile stainless steel AISI/SUS316 or 304 wire, aluminum wire or galvanized wire, also non metal materials of polyester, pp and fiber glass. Surface finished with powder coating.Durable and strong heavy type Tuff mesh is excellent for use in patio and porch enclosures as well as windows and doors.
Powder Coated Polyester / PVC / Fiberglass Mesh Tuff Window Screen for Houses, also Patio and Porch enclosure as well as windows and doors:
Heavy duty insect screen againest insect, pet and theft. Perfect flat surface,equal aperture,no faults and high security.
Specification:
Mesh count 11 x 11,Wire diameter 0.71mm/0.8mm
750mm x 2000mm or 2400mm
900mm x 2000mm or 2400mm
1200mm x 2000mm or 2400mm
Vinyl or Epoxy Powder Coated Black Metal Extra Tough Tuff Mesh: Stainless Steel Woven Mesh and Aluminum Woven Wire Mesh for Security:
Tuff Metal Screen has been developed to strengthen security doors and windows, used on security doors or sliders that have high traffic areas which may potentially damage the mesh. Metal tuff mesh coated black mesh offers extra toughness and superior strength protection. The Coated Black Stainless Steel Mesh or Aluminum Mesh ensures an unobstructed viewing from inside, when placed on Security Doors or Screens.
* Standard Color =Black
* Standard Widths =36", 48", 60", 72",96" and 120"
* Standard Roll Length =100'
Mesh Count =17 x 13
Yarn Diameter =.018
Fabric Thickness =.027
Openess Factor =Approximately 45%
UV Blockage =Approximately 55%
Breaking Strength (lb) =140 Warp, 112 Fill
Black Vinyl Powder Coated Aluminum Woven Wire Mesh Use it on Pool Cages, Patios Enclosures, Porches, Gazebos for Security of Windows and Door Screens.
Material:aluminum1060, aluminum3003 wire
Weaving :plain weave, twill weave, plain dutch weave and twilled dutch weave.
Wire diameter: 0.025-2.5mm
Specifications:
Mesh / Inch | Wire Diameter (mm) | Aperture (mm) | Mesh / Inch | Wire Diameter (mm) | Aperture (mm) |
2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 |
3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 |
4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 |
5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 |
8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 |
10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 |
12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 |
14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 |
18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 |
Charcoal Black Vinyl Coated Fiberglass Tuff Mesh for Insects and Animal Control:
The tensile strength and tear resistance make this the perfect solution for window screens. Its visibility and strength make it ideal for porch and patio applications.
Light and air pass through but not the bugs, and assists in keeping pets in and other animals out.
With added strength and durability, coated fiber mesh works great in second story and balcony applications to eliminate damage caused by wind blown debris.
Epoxy Resin Coated Woven PVC Pet Mesh:
