Air Pressure Micro Switch GPS100

Place Of Origin
China
Minimum Order
25000000
Packaging
Box/Carton
Delivery
4 Weeks
GPS100 Series Air micro switch is specially designed for the high-volume OEM market. Typical applications include boilers, hot water heaters, HVAC, and other industrial equipment.

These micro air pressure switches could be customized set points and can be used to detect positive, negative, or differential air pressure.

A sensitive highly reliable snap action switch is used as the main switching position. The snap action switch can provide a high switching capability of up to 16A 125/250VAC.

Air Pressure Micro Switch GPS100 Specifications
Place of Origin Guangdong, China (Mainland)
Brand Name Unionwell
Model Number GPS100
Set Point Range 10-1500Pa
On Pressure Range 25-1500Pa
Off Pressure Range 10Pa Min.
Circuit Code SPST-NO/SPST-NC/SPDT
OEM/ODM Available
Switch Rating 0.1A 125/250VAC,3A 125/250VAC,5A 125/250VAC,
16A 125/250VAC
Switching Element Snap Action Switch
Measured Media Air
Operating Temperature -40~+90°C

Pressure Switch Working Principle

The basic working principle of a micro air operated switch is relatively simple. A pressure switch typically consists of a spring-loaded diaphragm that is designed to move in response to changes in pressure. This diaphragm is typically connected to a mechanical switch, which can be either normally open (NO) or normally closed (NC).

When the pressure in the system being monitored changes, the diaphragm moves and activates the switch. If the switch is normally open, it will close when the pressure reaches a certain level. If the switch is normally closed, it will open when the pressure reaches a certain level.

Once the air pneumatic micro switch is activated, it can be used to control a variety of electrical circuits, such as turning on or off pumps, fans, or other equipment. Pressure switches are often used in conjunction with other sensing and control devices to provide a complete control system for a particular application.

In summary, the working principle of a pressure switch is based on the movement of a diaphragm that activates a mechanical switch in response to changes in pressure. This switch can be used to control various electrical circuits and can be normally open or normally closed depending on the application.

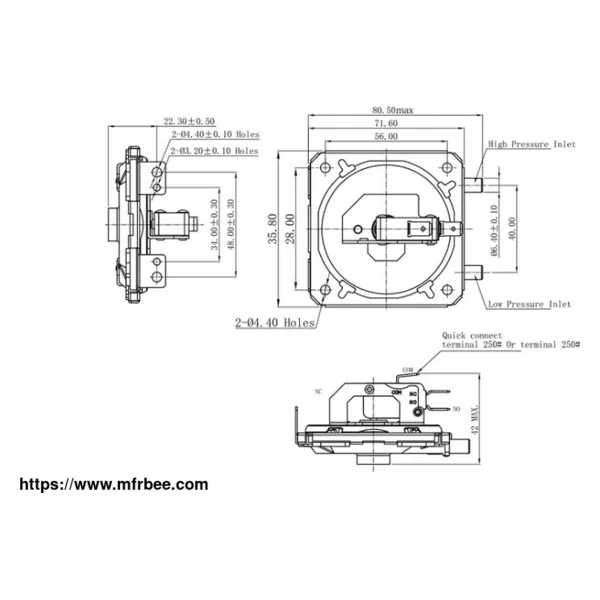

Air Pressure Miniature Micro Switch GPS100 Diagram
When the ignition switch of the wall-hung boiler is in working status, the fan starts and form a negative pressure difference in the combustion chamber. The air pressure switch sends a command to activate the water pump, the water flow switch sends the command to the high-voltage discharger. After the high-voltage discharger initiated, another signal is sent to the gas proportional valve, then the gas proportional valve come into operation accordingly. GPS100 series air pressure switches are used as detection elements. It is interlock controlled with the gas proportional valve and the flue gas induction switch. Proportional valve only works under a certain negative gas pressure in combustion chamber. When the flue gas induction switch detects no exhaust gas for 5 seconds, air pressure switch will close the gas channel in time, to avoid gas leaking.

Air Pressure Micro Switch GPS100 Applications
Micro Air pressure switch is usually applicated in traditional water heater, wall-hung boiler and HVAC devices for detecting the gas pressure and protecting relevant circuits.

Remarks:

The wall-hung boiler is a water heater that uses natural gas as energy. It is not only attractive in appearance, easy to use, but also small in size. It does not occupy a lot of usable area when it is installed on the wall of the family house. The wall-hung boiler can not only provide a large flow of constant temperature hot water for bathing, but also has a powerful central heating function for the family house, which can meet the heating needs of multi-room.

Whether you're looking for a single air operated micro switch for a specific application or need to purchase them in bulk for use in large-scale projects, Unionwell Switch has a variety of options available to you. With advanced features and reliable performance, air micro switch is an essential component for anyone who needs to control air pressure with precision and accuracy.

So if you're in the market for micro air pressure switch, consider exploring the wide range of options available from Unionwell Micro Switch, one of the reputable manufacturers. With our expertise and cutting-edge technology, you can be sure that you're getting the highest quality air operated micro switch on the market today.
