Roll Die Punching Machine

paper die punching machine

automatic die punching machine price

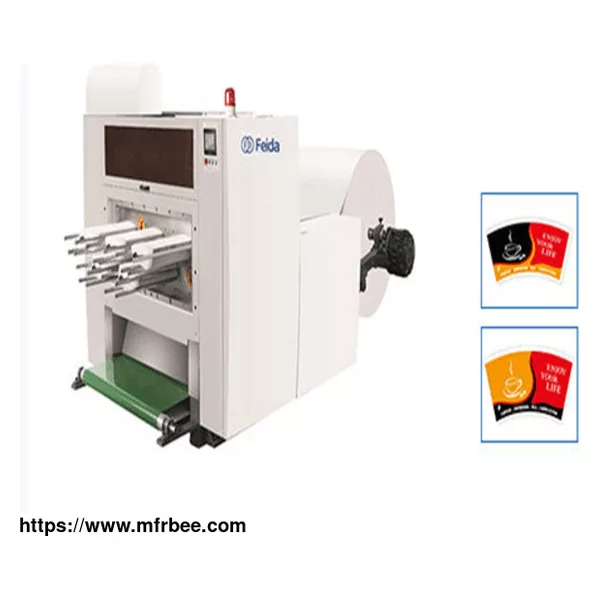

Roll Die Punching Machine based on international advanced technology, it's widely used in paper cup fan products. It adopts a micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication.

The equipment is suitable for the paper thickness of 150-350 gsm roll paper for rapid and precise punching, collecting, and stripping at the same time, can be applied to paper cups, paper bowls, paper plates etc.

Specification of Roll Die Punching Machine

Model FDC850 FDC920 FDC1000 FDC1200

Max Paper Width 850mm 920 1000 1200

Cutting Precision ±0.20mm

Paper Gram Weight 150-400g/m²

Production Capacity 280・380ti mes/min 280・380ti mes/min 280-330times/min 260-300times/min

Air Pressure Requirement 0.6Mpa

Air Pressure Consumption 0.25m3/min

Weight 3.5T 4T 4.5T 5T

Max Roller Diameter 1500mm

Total Power 10KW 10KW 10KW 12KW

Highlights of Roll Die Punching Machine

01

Stronger

It adopts a micro-computer, human-computer control interface, direct connection servo positioning which make higher accuracy, and we make the wallboard, base much stronger than others. It guarantees that when the machine runs up to 380 strokes/min without any shaking.

02

Lubrication System

Adopting forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life, you could set it to lubricate 10 seconds every 6 minutes.

03

Die-cutting Force

The die-cutting force is provided by a 5.5KW inverter motor. It is not only power-saving, but also can realize the step-less speed adjustment, especially when coordinate with the extra-large flywheel, which makes the die-cutting force strong and steady, and the electricity can be further reduced.

We adopt two swing arm cams which are much easier to adjust and operate when you change the punching mould, and it has higher stable pressure and high performance.

04

The Coordination Between Stepping Motor And Photoelectric Eye

The coordination between the stepping motor and the photoelectric eye which can identify colours assures the perfect fit of the die-cutting position and figures.

05

Electrical Cabinet

Frequency converter controls the main motor, with features of low energy and high efficiency. PLC and HMI: screen display the running data and status, all of the parameter can be set through the screen. Electrical Control System: adopts microcomputer control, encoder angle detect and control, photoelectric chase and detect, achieving from paper feeding, convey, die punching and delivering process automatic control and detect. Automatic Tension Control can control the paper tension automatically.

06

Feeding Unit

Adopts chain type pneumatic roller unwind, tension controls unwind speed, and that's hydraulic, it could support at 1.5T paper. Max roll paper diameter is 1.5m.

07

Die Cutting Mold

We adopt swiss material that could be used for at least 400 million strokes, and if the mould can't cut well, you could sharpen the blade by a flat grinding machine, it could be sharpened 4-5times.

Each punching mould in one cavity is divided into 4 pieces which can be adjusted easily.

Now the paper automatic die punching machine price is reasonable, if you have needs to buy a automatic die punching machine, please contact us.

As one of packing machine suppliers, we will do our best to meet all the needs of customers.
