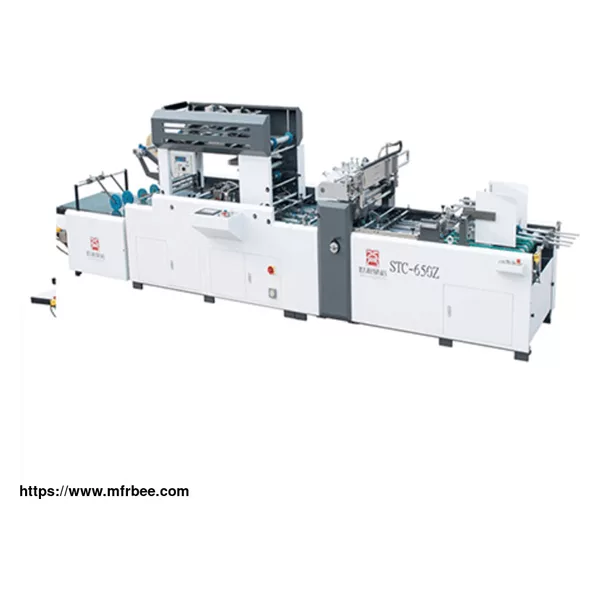

Automatic Window Patching Machine with Crashing and V Cut

This corner crimping machine is a multifunction automatic window patching machine, especially for cut and creasing on the film for different types, and pasting the film on kinds of boxes and cartons.

The v cut machine is made up of feeder, gluing, cut angle and creasing on film, sheets orientate, pasting film, and sheets collection.

This new model v cut machine with high automation, high accuracy and is easy to operate.

Features of Automatic Window Patching Machine with Crashing and V Cut

Film Pasting

The film is conveyed by servo motor through the computer tension control cut angle and creasing on film paper precise positioning to complete the film fitting process.

Specification of Automatic Window Patching Machine with Crashing and V Cut

Model STC-650Z

Max paper size (mm) 650x650

Min paper size (mm) 100x100

Max film size (mm) 300x300

Min film size (mm) 40x50

Cardboard (g/m²) 200-500

Corrugated thickness (mm) <4

Film thickness (mm) 0.05-0.3

Precision (mm) ±0.5

Max working speed (s/h) 7000

Total power (kw) 12

The total weight (T) 3

External dimension (mm) 5800x1600x1600

If you are looking for a reliable packaging machinery exporter, please contact us, and we will be your best partner.
