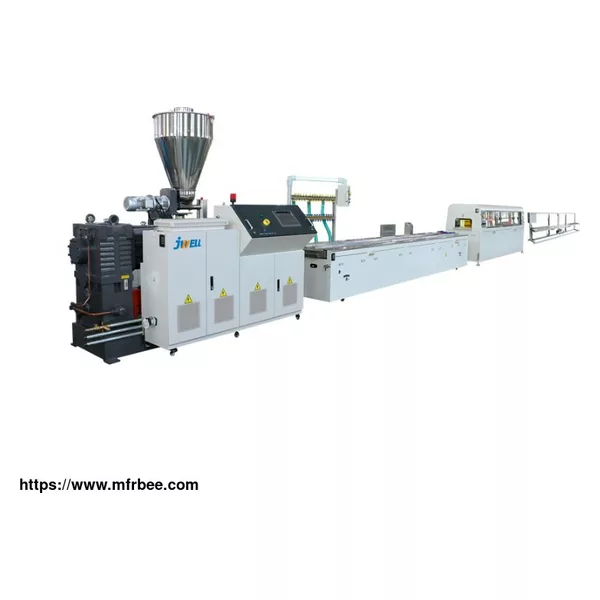

PVC Trunking Extrusion Line

By adopting the European advanced extrusion technology, we successfully developed the high speed extrusion line for small profiles, such as PVC trunking, PVC gutter, PVC edge banding, PVC skirting, PVC sealing strip and ABS profiles, which have the features of good shape, smooth surface, strong hardness and great plasticizing.

This PVC trunking extrusion line consists of twin screw extruder, vacuum calibration unit, haul-off unit, cutter and stacker, which has the features of good plasticizing, high output, low power consumption and stable PVC trunking production process.

Advantages of PVC Trunking Extrusion Line

01.

Based on smart computer control system, easy operation.

02.

Special screw structure ensures fast feeding and stable plasticizing.

03.

Jwell extruder china has own screw company founded in 1978 for independently research and develop various screw to meet different production requirements, also can ensures sustainable after-sales service.

04.

JWELL has ranked first in the extrusion industry for 11 consecutive years, making us one of the leader in China's extrusion machinery industry, which means we could offer you good quality extrusion equipment and reliable after-sales service.

Specification of PVC Trunking Extrusion Line

High speed main technical parameter

Type YF240 YF240 YF240A

Max. width of product (mm) 240 240 150*2

Extruder model SJP75/28 SJP93/30 SJP110/28

Max.extrusion capacity (kg/h) 150-250 250-400 400-500

Extruder power (kW) 45 55 90

Cooling water (m3/h) 7 8 10

Compressed air (m3/min) 0.6 0.6 0.8

Classic type main technical parameter

Type YF108 YF240 YF240A YF300 YF400

Max. width of product (mm) 108 240 150*2 300 400

Extruder model SJZ55/110 SJZ65/132 SJZ65/132 SJZ65/132 SJZ80/156

Max.extrusion capacity (kg/h) 150 250 250 250 450

Extruder power (kW) 22 37 37 37 55

Cooling water (m3/h) 7 8 8 8 10

Compressed air (m3/min) 0.6 0.6 0.8 0.6 0.6

Find More About PVC Pipe Extrusion Line

Haul Off of PVC Trunking Extrusion Line

Haul Off

Two tractors driven by two independent motors.

Speed controlled by imported imported inverter.

Cutter of PVC Trunking Extrusion Line

Cutter

Cutting knife movement controlled by pneumatic cylinder.

PLC system control system ensures accurate cutting.

Manual cutting and automatic cutting choice.

The Application of PVC Trunking Extrusion Line

PVC trunking or PVC cable duct trunking is usually used in communication industry.
