GJS1L0C85 supports the 2-wire serial communication protocol defined in SFF-8472, which accesses digital diagnostic information via a 2-wire interface at address 0xA2. Digital diagnostics default to
internal calibration, and the internal micro-control unit accesses device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical
power, and transceiver supply voltage in real-time. The module implements the alarm function of the SFF-8472, alerts the user when a particular operating parameter exceeds the factory-set normal
range.

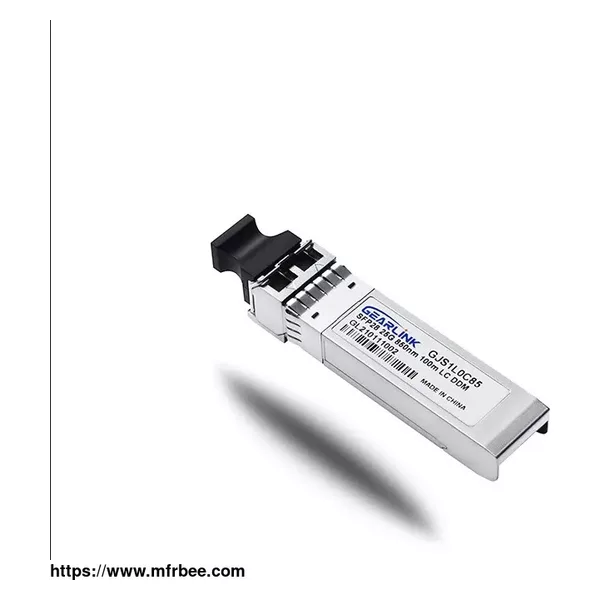

Technical Specification Of 25G-SFP28-SR 850nm 100m DDM LC
Parameter Symbol Min Typ Max Unit Remarks
Operating Temperature TC 0 70 ◦C 1
Storage Temperature TESTO -40 85 ◦C 2
Supply Current ICC 145 290 mA 3
Input Voltage VCC 3.15 3.3 3.46 V
Maximum Voltage VMAX -0.5 4 V 3
More applications of multimode fiber module, please visit our website.
If you have needs to buy sfp28, please contact us.
As a reliable optical transceiver manufacturer, we can offer kinds of optical module transceiver for sale, anything you need, please leave us a message.
