SFP28 25G 850nm XXm AOC

Minimum Order
1
Packaging
N/A
Delivery
15 Days
MFA2P10-A005
MFA2P10-A003

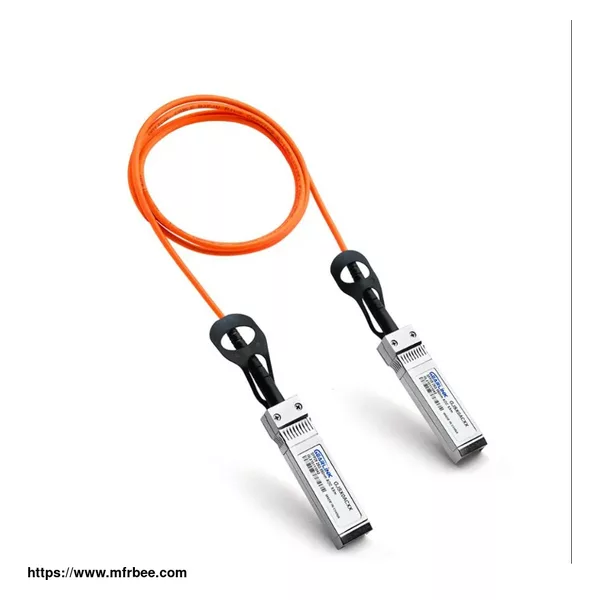

The GearLink’s SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. qsfp28 aoc have very good power consumption performance. 25g aoc are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. The length of GearLink’s SFP28 Active Optical Cables is up to 70 meters on OM3 MMF.

Compatibility of SFP28 25G 850nm XXm AOC
SFP-25G-AOC 30M 30M 25G SFP28 AOC
SFP-25G-AOC 20M 20M 25G SFP28 AOC
SFP-25G-AOC 15M 15M 25G SFP28 AOC
SFP-25G-AOC 7M 7M 25G SFP28 AOC
SFP-25G-AOC 5M 5M 25G SFP28 AOC
SFP-25G-AOC 3M 3M 25G SFP28 AOC
SFP-25G-AOC 1M 1M 25G SFP28 AOC

Technical Specification Of SFP28 25G 850nm XXm AOC Transceiver Module

Absolute Maximum Ratings
Parameter Symbol Min. Typical Max. Unit Notes
Supply Voltage Vcc3 -0.5 - 3.6 V
Storage Temperature Ts -40 - 85 °C
Operating Humidity RH 5 - 85 % 1

Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Unit Notes
Operating Case Temperature TC 0 - 70 °C
Power Supply Voltage Vcc 3.14 3.3 3.47 V
Power Supply Current Icc - - 300 mA
Power Dissipation Pd - - 1 W
Bit Rate BR 8.5 25.78125 - Gbps

As one of transceiver suppliers, we will do our best to meet all the needs of customers.
