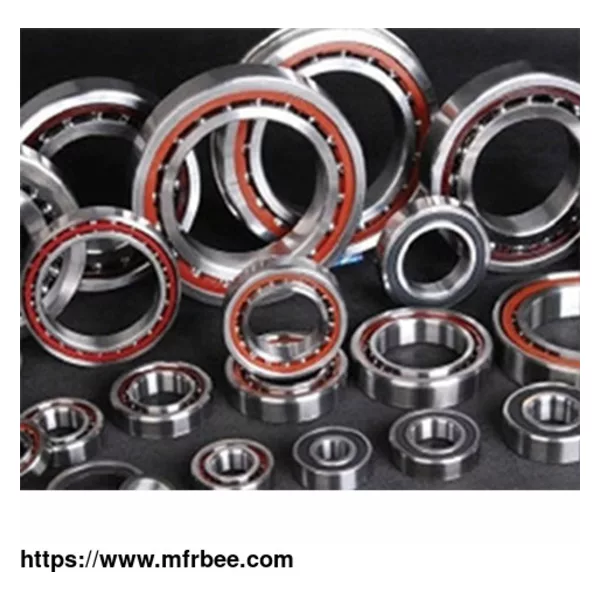

Double Row Angular Contact Ball Bearing

FOB Price: USD $10.00 / Piece

Minimum Order: 30000

Packaging: N/A

Delivery: 30 Days

The design of VXO double angular contact ball bearings corresponds to two single row angular contact ball bearings arranged back-to-back.

Features of double row angular contact ball bearing skf

Less axial space

Can be used for applications where two single row angular contact ball bearings arranged back-to-back take up too much axial space.

Accommodates radial as well as axial loads in either direction

Accommodates tilting moments

Stiff bearing arrangement

Specifications Of Double Row Angular Ball Bearing

Dimensions Basic load rating

Designations(polyamide cage) d D B C C0

*3204 ATN9 20 47 20,6 19.6 11.76

*3304 ATN9 20 52 22,2 23.128 14.308

*3205 ATN9 25 52 20,6 21.168 14.014

*3305 ATN9 25 62 25,4 31.36 19.992

*3206 ATN9 30 62 23,8 29.4 19.992

*3306 ATN9 30 72 30,2 40.67 26.95

*3207 ATN9 35 72 27 39.2 27.44

*3307 ATN9 35 80 34,9 50.96 34.79

3307 DJ1 35 80 34,9 51.646 40.67

*3208 ATN9 40 80 30,2 46.55 33.32

*3308 ATN9 40 90 36,5 62.72 43.12

3308 DNRCBM 40 90 36,5 48.412 40.67

3308 DTN9 40 90 36,5 67.522 55.86

*3209 ATN9 45 85 30,2 49.98 38.22

*3309 ATN9 45 100 39,7 73.5 51.94

3309 DNRCBM 45 100 39,7 60.564 50.96

3309 DMA 45 100 39,7 77.714 68.11

*3210 ATN9 50 90 30,2 49.98 38.22

*3310 ATN9 50 110 44,4 88.2 62.72

3310 DNRCBM 50 110 44,4 80.262 68.11

3310 DMA 50 110 44,4 91.728 83.3

*3211 ATN9 55 100 33,3 58.8 46.55

*3311 ATN9 55 120 49,2 109.76 79.87

3311 DNRCBM 55 120 49,2 93.688 81.34

3311 DMA 55 120 49,2 108.78 98

*3212 ATN9 60 110 36,5 72.03 57.33

*3312 A 60 130 54 124.46 93.1

3213 A 65 120 38,1 78.988 72.03

*3313 A 65 140 58,7 143.08 107.8

3313 DNRCBM 65 140 58,7 135.24 119.56

3214 A 70 125 39,7 86.632 78.4

*3314 A 70 150 63,5 159.74 122.5

3215 A 75 130 41,3 93.688 86.24

*3315 A 75 160 68,3 172.48 137.2

3216 A 80 140 44,4 103.88 93.1

*3316 A 80 170 68,3 189.14 152.88

3217 A 85 150 49,2 121.52 107.8

*3317 A 85 180 73 203.84 172.48

3218 A 90 160 52,4 127.4 117.6

*3318 A 90 160 73 127.4 117.6

3219 A 95 170 55,6 155.82 143.08

*3319 A 95 200 77,8 235.2 211.68

3220 A 100 180 60,3 174.44 162.68

3320 A 100 215 82,6 249.9 249.9

3222 A 110 200 69,8 207.76 207.76

3322 A 110 240 92,1 285.18 298.9

If you want to know more kinds of linear motion control systems, please visit our website.
