Low Noise, Acceptable Running Sound
The use of the ball cage eliminates the collision noise between the balls. Additionally, as balls are picked up in the tangential direction, the collision noise from the ball circulation has also
been eliminated.
Long-term Maintenance-free Operation
The friction between the balls has been eliminated, and the grease retention has been improved through the provision of grease pockets. As a result, the long-term maintenance-free operation (i.e.,
lubrication is unnecessary over a long period) is achieved.
Smooth Motion
The use of a ball cage eliminates the friction between the balls and minimizes the torque fluctuation, thus allowing the smooth ballnut motion to be achieved.

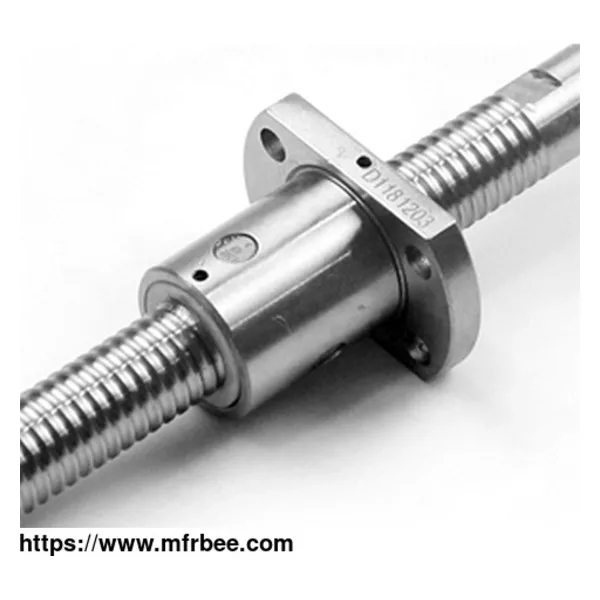

Specification of Flanged Nut
Model d D F L B W H X Dynamic load Static load Axial clearance
MIF0401 4 10 20 12 3 15 14 2.9 490 700
MIF0501 5 10 20 12 3 15 14 2.9 530 810
MIF0601 6 12 24 15 3.5 18 16 3.4 580 1000
MIF0602 6 12 24 15 3.5 18 16 3.4 750 1200
MIF0801 8 14 27 16 4 21 18 3.4 780 1650
MIF0802 8 14 27 16 4 21 18 3.4 1500 2600
MIF0802.5 8 16 29 26 4 23 20 3.4 1850 3000
MUF0804 8 16 29 26 4 23 20 3.4 2350 3300
Model d D F L B W H X Q Dynamic load Static load Axial clearance
MIF1002 10 18 35 28 5 27 22 4.5 - 1500 2600
MIF1003 10 20 37 32 6 29 24 4.5 - 2600 5200
MIF1004 10 20 37 38 8 29 24 4.5 M5 3000 5200
Model d D F L B W H X Dynamic load Static load Axial clearance
MIF1201 12 20 37 28 5 29 24 4.5 780 1600
MIF1202 12 20 37 28 5 29 24 4.5 3000 6000
MIF1203 12 22 39 32 6 31 26 4.5 3650 9900
MIF1204C 12 24 40 28 6 32 25 3.5 4100 9900
MIF1205 12 22 43 38 8 31 26 4.5 6190 8830
Model d D F L B W H X Q Dynamic load Static load Axial clearance
MIF1402 14 21 40 23 6 31 26 5.5 - 2890 6330
MIF1403 14 24 41 32 6 33 28 5.5 - 2900 4600
MIF1404 14 26 45 33 6 36 28 5.5 - 4500 8600
MIF1405 14 26 46 40 8 36 30 5.5 - 5700 11600
MIF1602 16 25 43 40 10 35 29 5.5 M6 3730 12000
MIF2002 20 30 50 40 10 40 35 5.5 M6 5810 22840
