Tarpaulin Flexible Duct
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

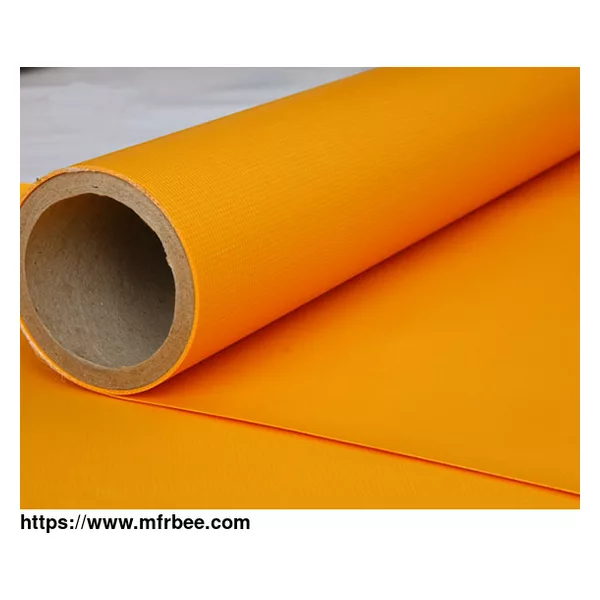

Tarpaulin used to make flexible duct is a PVC coated or laminated tarpaulin. PVC laminated tarpaulin is used to make small ventilation duct. Thepvc coated tarpaulin china is used to make large airduct which is applied in mining industry. The PVC tarpaulin is fire resistant and anti static. We can slit the tarpaulin to small width for our customers.
The Details OfTarpaulin Flexible Duct
| Item No: | Descriptions | Unit | Your Product Measurements: | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Plain Weave | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 12 |
| DIN EN 1049 | Weft: | Threads/cm | 12 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 120 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 700 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 1800 |
| Weft: | N/5cm | 1600 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 250 |
| Weft: | N | 220 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |
The Features Of Tensile Membrane Tarpaulin
01
Anti Static
For the ventilation duct, we can make it to be anti static at 10*8.
02
Fire resistant
Our tarpaulin for airduct is fire resistant, it is M1 and B1 and NFPA701 compliant.
03
High Strength
We use high strength polyester fabric to make the tarpaulin, the tear strength can reach to 400N.
How Do You Pack The PVC Tarpaulin That Used To Make Flexible Duct?
Normally, we pack 50M per roll with craft paper. But for the tarpaulin used to make flexible duct, some customers need 500M or 1000M length per roll, we can pack as customers requirement.
Now the price oftarps wholesale is reasonable, anything you need, please contact us.
