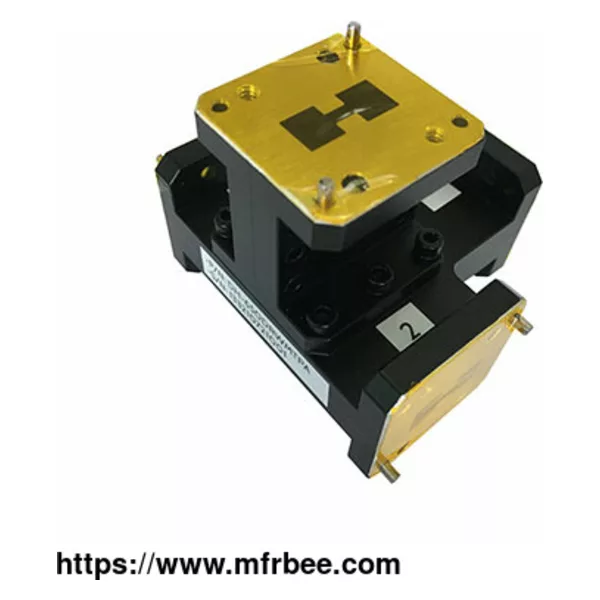

Double Ridged Waveguide Tees
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Dolph Microwave provides a series of high-performance waveguide tees, power divider, and combiner products. By connecting a load to the E and H plane tee , it can be made into a Magic T power
divider or synthesizer. The magic tee in microwave engineering has the characteristics of opposite port isolation, adjacent 3 dB coupling and perfect matching, which makes wave guide tees widely
used in the microwave field, especially used in monopulse radar and difference comparator, radar transceiver switch, power distribution/combination, mixed Frequency converter and phase shifter.
Waveguide E And H Plane Tees Ordering Guide
Ordering Guide of Double Ridged Waveguide Tees
Flange type: Multiple types of waveguide tee in microwave available - see Dolph Microwave Flanges page.
Finish: Corrosion protection plus black top coat of our magic tee microwave in microwave engineering.
E Plane and H Plane Waveguide Tees Datasheet
Magic Tee Diagram
Magic T waveguide are widely used as hybrid circuits in microwave impedance bridges, balanced mixers in receivers, and frequency
discriminators.
The structure is composed of an E-plane branch and H-plane branch coupled with each other, providing good impedance characteristics and
symmetric property over the entire frequency range.
E-plane and H-plane waveguide has been designed to minimize the leakage of RF wave between the E-plane and H-plane branches with other waveguide ports perfectly matched.
Details Of Waveguide Magic Tees In Microwave Engineering
Waveguide Tee In Microwave Advantages
Double-ridged magic T waveguide can provide more bandwidth than "normal" rectangular waveguide Magic T.
Application Of Waveguide Tees
1. Measure the impedance
A null detector is connected to E-Arm port while the Microwave source is connected to H-Arm port. The collinear ports together with these ports make a bridge and the impedance measurement is done
by balancing the bridge.
2. As a duplexer
The duplexer is a circuit which works as both the transmitter and the receiver, using a single antenna for both the purposes. Port 1 and 2 are used as receiver and transmitter where they are
isolated and hence will not interfere. An antenna is connected to E-Arm port. A matched load is connected to H-Arm port, which provides no reflections. Now there exists transmission or reception
without any problem.
3. As Microwave Bridge, Microwave discriminator, etc.
Waveguide Tee In Microwave FAQs
What are the types of waveguide tees?
There are three main types of Waveguide Tees:
1. E-Plane Waveguide Tee
2. H-Plane Waveguide Tee
3. E-H Plane Waveguide Tee(Magic Tee, or Hybrid or 3dB coupler)
What is meant by E-plane H-plane magic tee?
What is the difference between E-magic plane tee and H-plane tee and magic tee?
What is a magic tee in microwave engineering?
Why Choose Dolph As Your Waveguide Tees Supplier?
Strong R&D Capacity
Dolph pay more attentions and efforts to research & development. It helps us to provide the wave guide tees with excellent performance. As of it now, a total of 36 national patents have been
applied, including 10 invention patents, 20 new utility patents, 3 computer software Copyrights and 3 integrated circuits.
Advanced Equipment For Production And Inspection
Precision CNC equipment, argon arc welding, silver brazing and aluminum brazing, 110G microwave measurement testing equipment.
Rich Experience
Our company had good reputation with customers from American, Europe, North America, Russia and so on. We also have a excellent team for sale and quality control.
Good Service
As a leading professional waveguide tees manufacturer, Dolph want to serve worldwide clients with high proformance products, great reliability, professional services and honorable credibility to
meet customers' requirements. Offering skillful after-sale-service, specialists are available for all clients at 7*24 hours every week.
Most Competitive Price
High proformance magic tee in microwave engineering with the most competitve price to enlarge business in your local.
