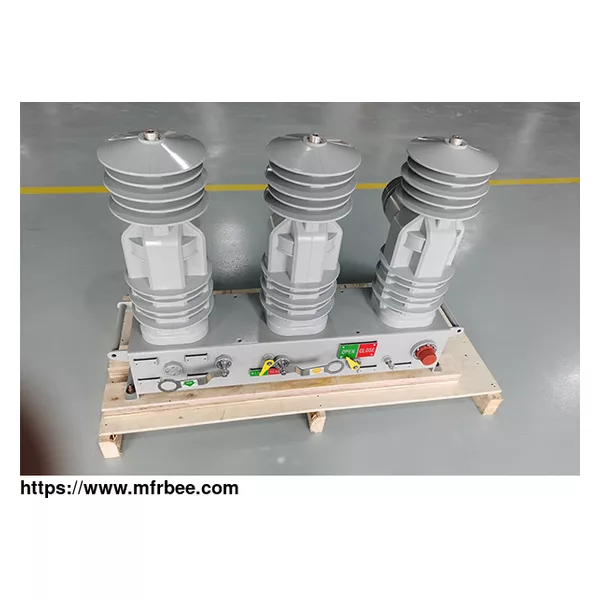

24KV Recloser Vacuum Circuit Breaker
Product Quick Detail
- FOB Price
- USD $2,300.00 / Piece
- Place Of Origin
- Zhuhai,Guangdong,China
- Minimum Order
- 1
- Packaging
- Wooden case
- Delivery
- 25-45 days
Specifications
The 24KV breaker switch unit is comprised of three poles, the operating mechanism, and the operating mechanism housing. The sequence of the poles is A -B – C or 1 – 2 - 3 (sequence left to right
when viewed from the lower terminal side of the recloser switch unit.
Each 24kv vacuum circuit breaker by GOPOWER is embedded in a solid-insulated pole made of weather-proof cyclo aliphatic epoxy resin. This enables a small design as well as resistance against
environmental effects.
Breaker principle and design of 24KV Vacuum Circuit Breaker
ZW32 series 24KV circuit automatic recloser are used in distribution systems. 24kv vacuum circuit breakes are used to make and break normal and fault currents. Breakers are fully equipped with
sensors and a controller to provide a means of protection and control. For more pole top switches at bulk price.
In case of a line fault, breakers can break and make currents several times, thus avoiding longer network interruptions due to temporary faults. The manufacture, design, and testing of the vacuum
recloser is based on current standards IEC 62271-111：2019
Technical Parameters of 24KV Vacuum Circuit Breaker
Products Type ZW32-24
Maximum System Voltage 24kV
Rated Continuous Current 630A
Rated Frequency 50/60Hz
Short Time Withstand Current 20kA/1sec
Mainly Active Load Current 630A
Number of Load-break Operations 30
Short-circuit Making Current (peak) 50kA
Number of Making Operations 5 times
Cable Charging Current 25A
Line Charging Current 1.5A
Closed Loop Circuit Current 630A
Transformer Magnetizing Current 22A
Wet Condition-10sec Ph- Ph-Eth, Across Interrupters 50kV
DryCondition-1min，Ph- Ph, Phase to Earth 65kV
Dry Condition - 1 min AcrossInterrupter 79kV
Phase to Phase, Phase to Earth 125kV
Across Interrupter 145kV
Internal Arc Test 20kA /0.1 sec
Arc Extinction Medium vacuum
Insulation Medium vacuum
Creepage Distance (Silicon) 960mm
Dry arcing distance 200mm≥
IP Level 67
Closing/Opening Time ＜1sec
Mechanical Operations (Guaranteed) 10000times
Operating Temperature (*Manual Type) -25～+70℃
