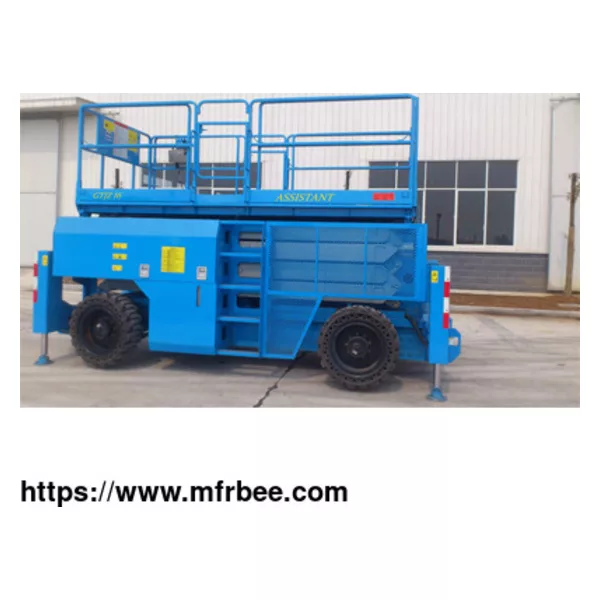

Omni Direction Self-Propelled Electric Scissor Lifts
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Place Of Origin
- Shanghai China
- Minimum Order
- 1
- Packaging
- NUDE
- Delivery
- 30DAYS
Specifications
We are professional Omni Direction Self Propelled Electric Scissor Lifts manufacturer, supplier and factory in China. We can produce scissor lift according to your requirements.
Product Features
:
Omni Direction self propelled scissor lift is mainly applied in the fixing, constructing, detecting and maintenance of steel structure workshop and sorts of aerial equipment. With character of
omnidirection and lateral-step, it can be operated in condition which space is limited and working height is tall. CE certified.
1) Structure: scissors, enable extended-platform, the setting of anti-press.
2)Sole control system, character of omnidirection, side drive.
3)Four-wheel drive, the direction of Mecanum wheel could be controlled separately by the control system.
4)Maximum speed: 4-5km/h.
5)Gradeability: 15%.
6)Pot-hole protection and tilt alarm.
7)Emergency down-valve device
8)OBD circuit fault code display
9)Engine restart protection
10)Engine glow plug preheating unit
11)Overload limit
12)Forward and backward extension platform
Parameters
Model JCPT1013(OD) JCPT1213(OD)
S.W.L 450kg 400kg
S.W.L On Extension 112kg
Max. Occupants 2
Working Height(H1) 10.00m 12.00m
Platform Floor Height(H2) 8.00m 10.00m
Overall Length 2.48m
Overall Width 1.39m
Overall Height 2.51m
Platform Size 2.27m×1.12m
Platform Extension Size 0.90×1.12m
Ground Clearance 0.08m
Wheel Base 1.80m
Turning Radius 0
Drive Motors 4×48VAC/1.5kw
Lifting Motor 48VDC/2kw
Travel Speed(Stowed) 3.5km/h
Travel Speed(Raised) 0.8km/h
Up/Down Speed 62/65 sec 79/72 sec
Betteries 8×6V/210Ah
Integrated Charger 48V/25A
Maximum Working Slope 3°
Tyre ￠460×240mm
Gross Weight 3120kg 3280kg
If you want to know more kinds of omni wheel forklift, please visit our website.
Now the price of multi lift fork trucks is reasonable, if you have needs, please contact us.
